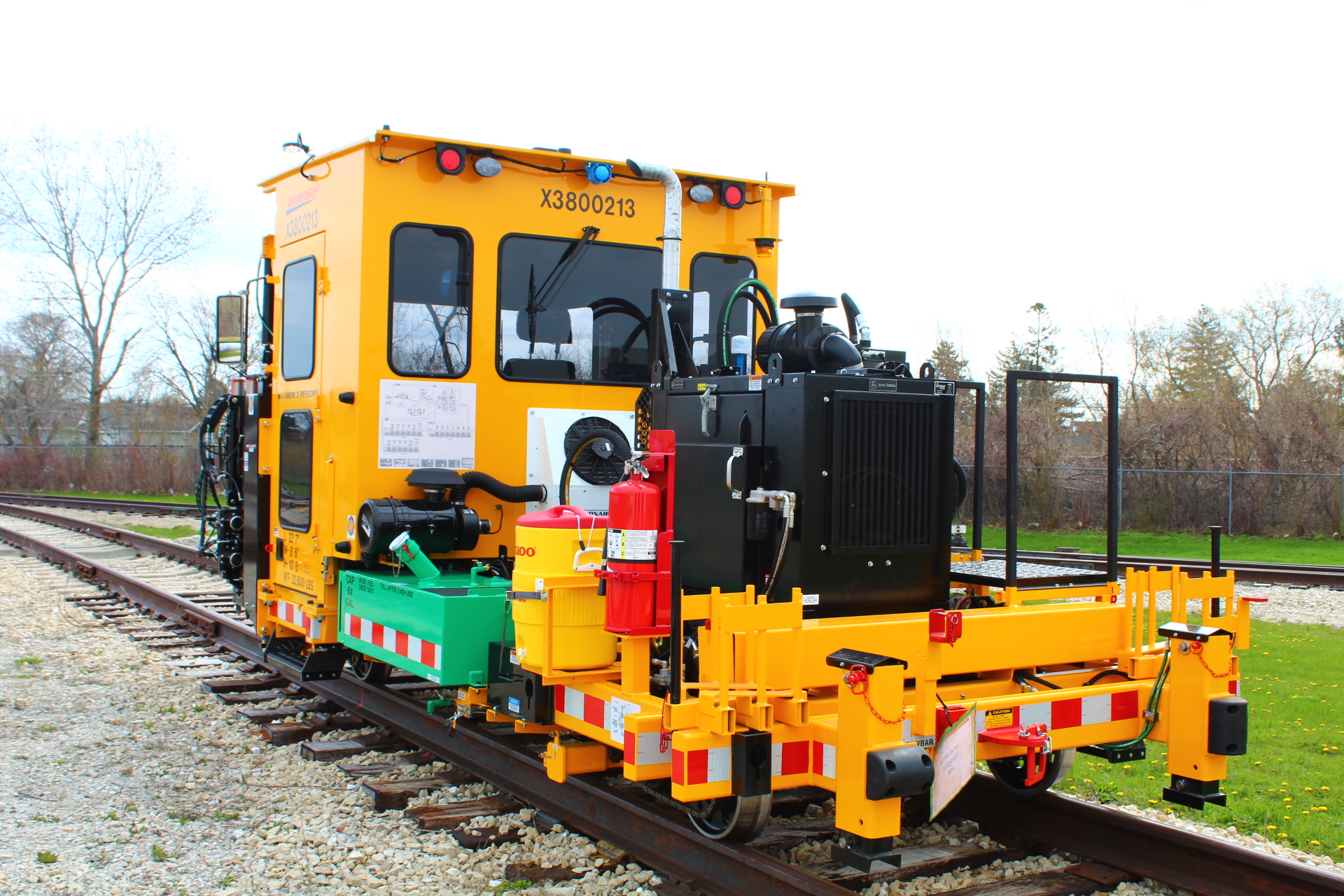

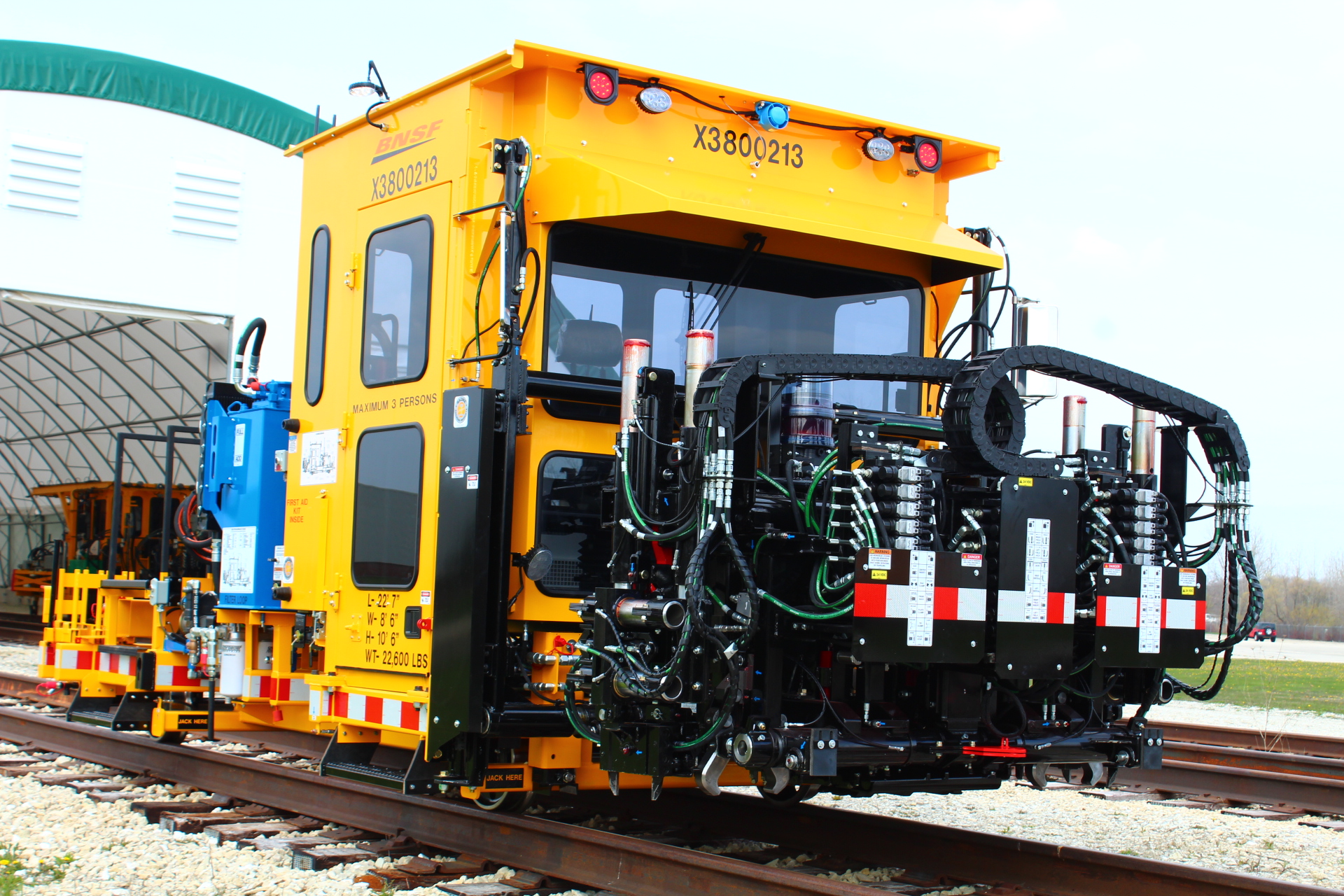

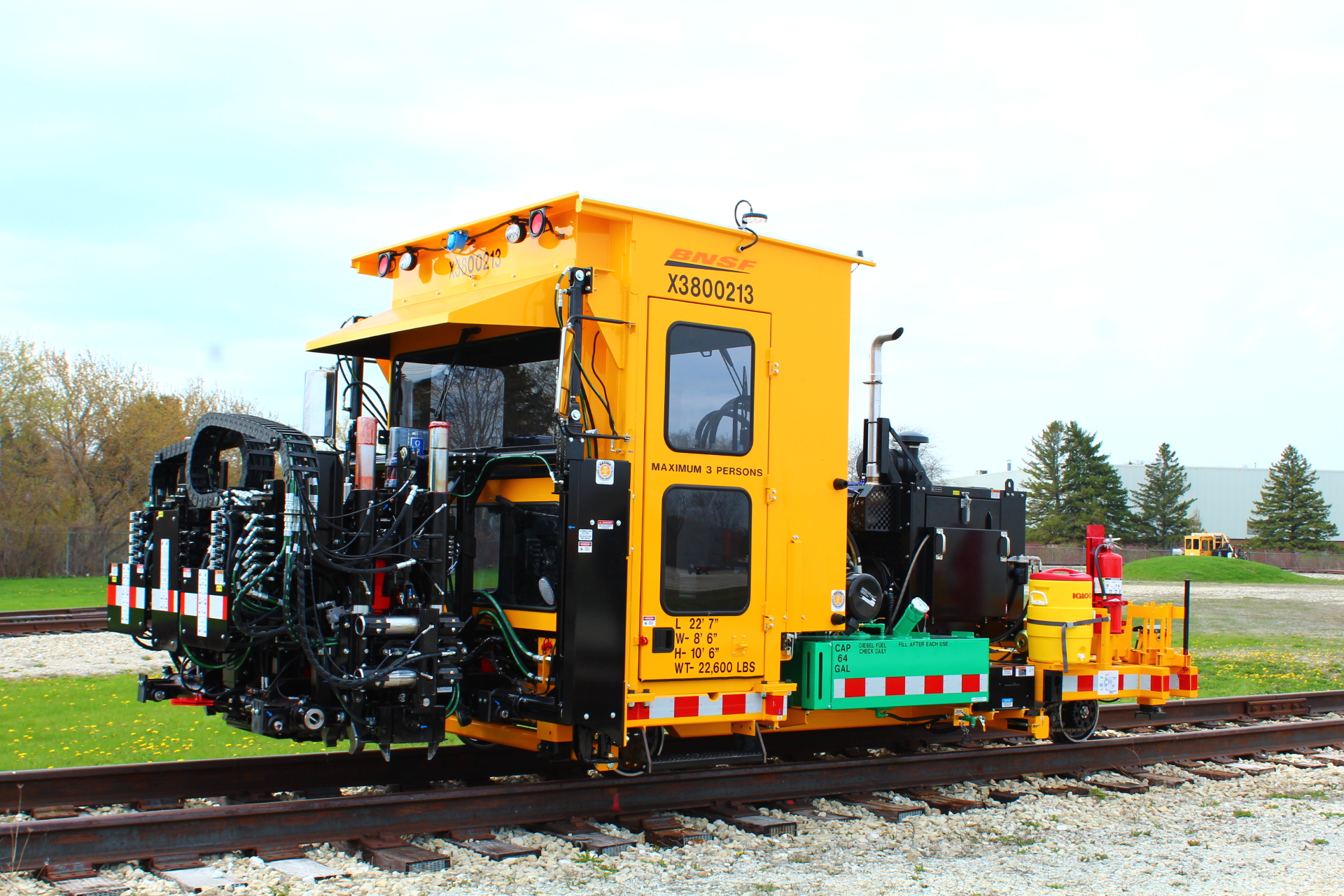

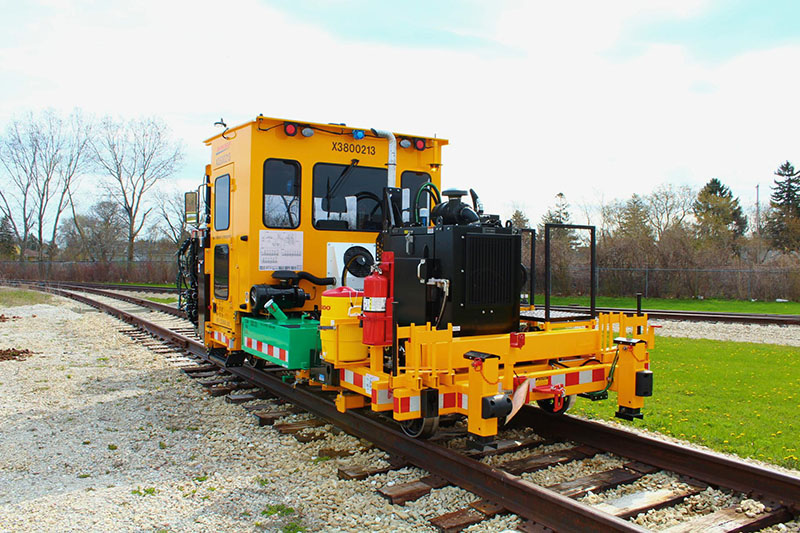

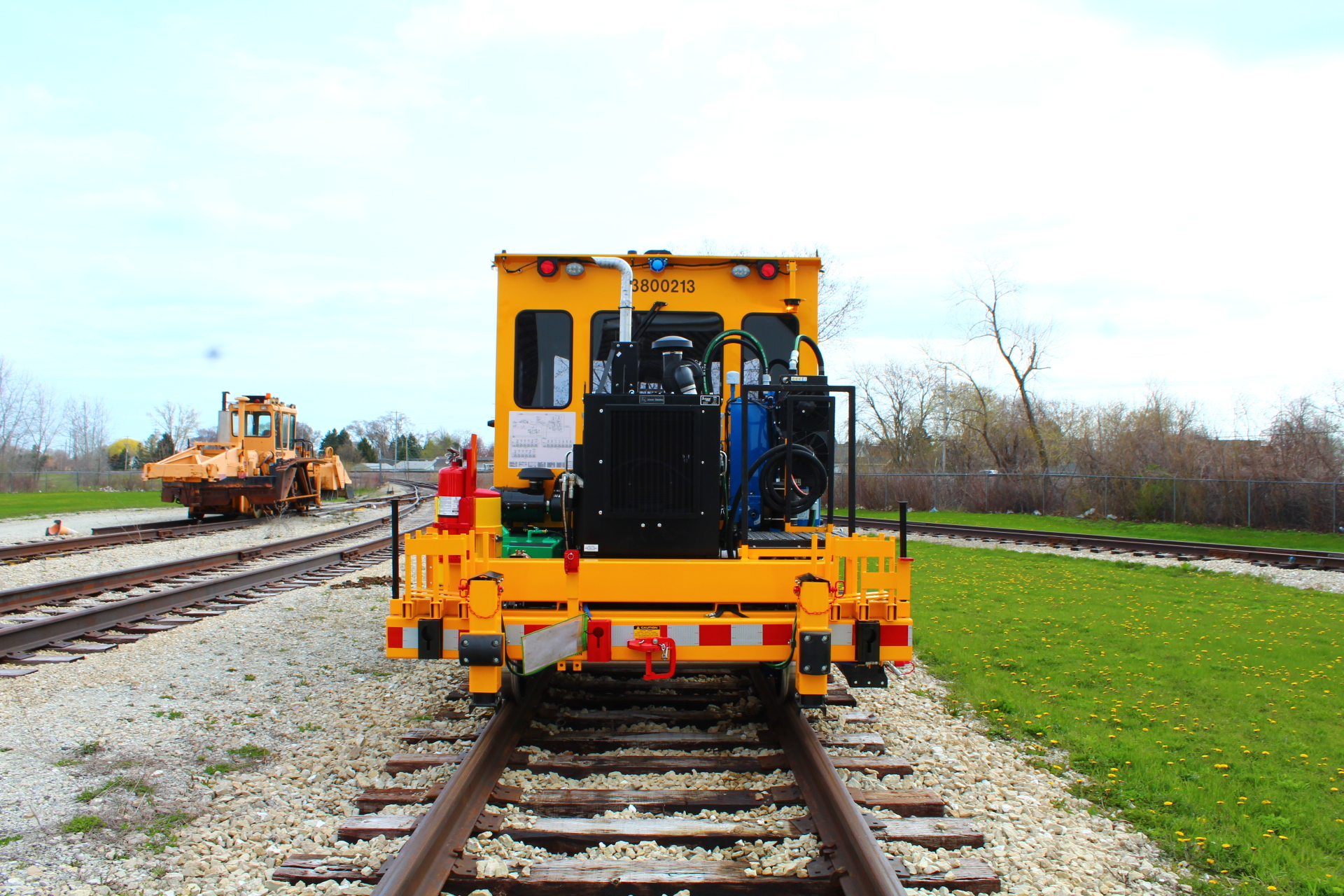

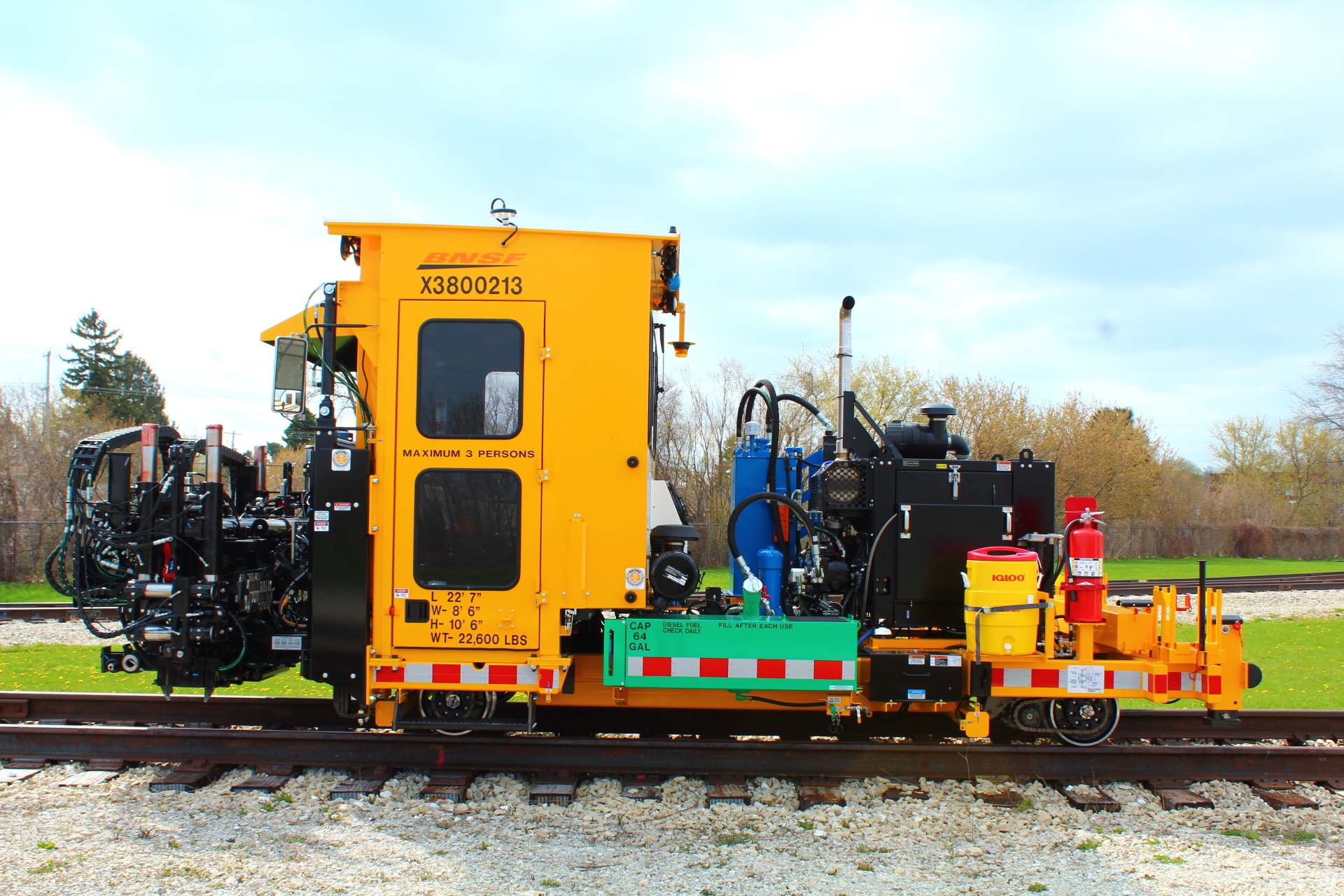

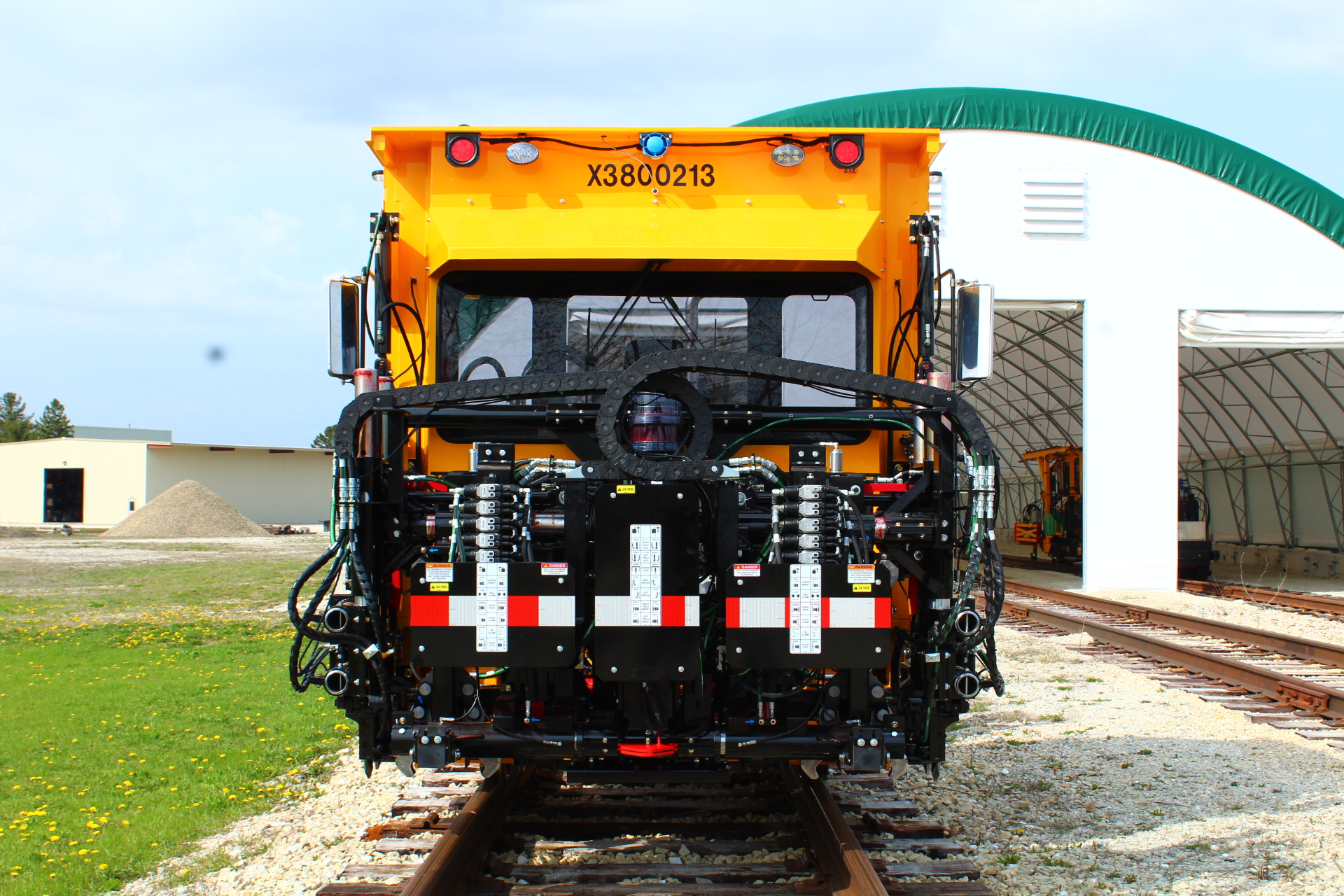

Advanced Tie Plate Inserter
ATPI
Overview
The ATPI lifts the rails and inserts the tie plates in the proper position on the ties, then lowers the rails onto the plates, enabling a secure rail-to-tie connection.
Features
- Each railjack and workhead is independently controlled with a joystick
- Tie plates can be maneuvered fore and aft, left and right
- Hard stops ensure proper placement of plates before the rail is lowered
- Workhead lighting for night and tunnel projects
- Excellent 360-degree visibility fore and aft when track traveling
- Workhead adjustments are made at the operator seat with touchscreen controls, saving time and providing safer machine adjustments
- Onboard electrical system diagnostics to simplify troubleshooting and lessen downtime
- Smart hydraulic valves with self-diagnostics and maintenance screens increase flexibility, reliability, and reduce parts inventory by using the same control valve for every function
- Selective work/travel modes
Specs
- Seating Capacity: 6 (one operator, five passengers), multiple cab sizes available
- Travel Speed: 24 mph (~39 km/h); chain-driven propulsion system
- Fuel Tank Fill Capacity: 64 gallons (~241.5 litres)
- Hydraulic Reservoir Fill Capacity: 51 gallons (~193 litres) with clean-out covers, guarded fluid level, and temperature gauge
- 24V DC system with circuit breakers for lights and accessories
- Structural steel frame with derail skids, keyhole tie downs, rubber bumpers
- Cast steel wheels for long wear, self-aligning roller bearings, and axle locks for safe operation
- Ergonomic seat with joystick controls
Dimensions
- Length: 22' 3" (~6.8 m)
- Width: 8' 6" (~2.6 m)
- Height: 10' (~3 m)
- Weight: 22,500 lbs (~10,207 kg)
*Dimensions vary based on user options
Safety
- Enclosed cab with HVAC system, in-cab pressurizer for a safer work environment, and acoustical protection
- Dual side egress optimizes safe operator exit in congested areas
- Safety is enhanced using electric-powered controls that reduce operator fatigue
