Racine Cut-Off Wheels (Aluminum Oxide)

Racine Cut-Off Wheels (Aluminum Oxide)

One Wheel For All Rail Saws
Racine Abrasive Wheels can be used with any fixtured rail saw on the market with typical longevity of four to six cuts, or more.

Save on Inventory Cost
Reduce the cost of stocking multiple wheel types specific to one model saw.

Durable

  • On 132 lb standard rail, the 16" wheel delivers up to 5 cuts per wheel without turning the saw around.
  • Up to 7 cuts when the cut is finished from the other side.​

Trueness

  • The Racine Abrasive Wheel edges are “dressed” at the factory to ensure every wheel has excellent roundness.
  • A smooth edge for a more accurate and efficient cut right from the start of a new wheel.

Accurate
Retains excellent tolerances in square-ness of the cut, vertically as well as horizontally.

Specifications: 14" Wheel / Model 469935

Abrasive Material
Aluminum Oxide
Blade Diameter
14 in. (355 mm)
Blade Thickness
5/32 in. (4 mm)
Arbor Hole Diameter
1 in. (25.4 mm)
Maximum Speed
4800 RPM

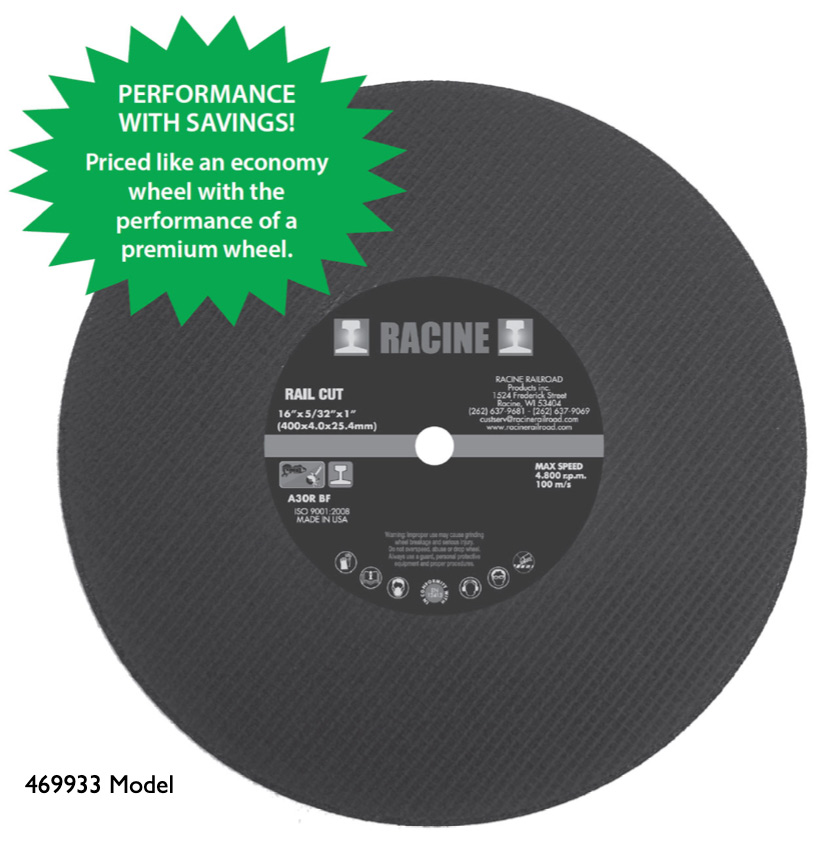

Specifications: 16" Wheel / Model 469933

Abrasive Material
Aluminum Oxide
Blade Diameter
16 in. (400 mm)
Blade Thickness
5/32 in. (4 mm)
Arbor Hole Diameter
1 in. (25.4 mm)
Maximum Speed
4800 RPM
