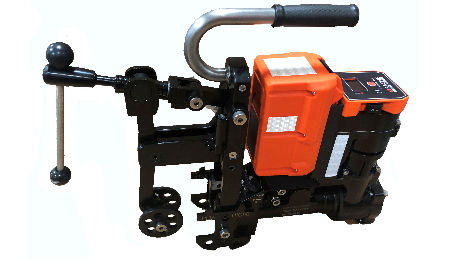

Rail Drill (910212)
The battery Rail Drill is a portable, 36 VDC Lithium Ion battery-powered, quality rail drill with features that make it the perfect solution for easy and accurate bolt hole drilling.
The battery Rail Drill is a portable, 36 VDC Lithium Ion battery-powered, quality rail drill with features that make it the perfect solution for easy and accurate bolt hole drilling.
Benefits and Features
- Easy to Use - Simple On/Off switch and easy manual advance lever.
- Cutter RPM - 270 RPM arbor speed.
- Performance - Drilling times <20 seconds.
- Coolant - Pressurized coolant bottle included.
- Light Weight - At only 35lbs (with battery), reduces operator fatique.
- Ergonomic - Simple advancing handle desing makes drilling easy.
- Quick Release Clamp - Clamp can be disengaged in ,1 second emergency situations.
- Cutter - Quick connect/disconnect 1" to 1.5" diamater holes.
- Assist Handle - For more grip options.
- Variable - Drill 60-141 lb rail with custom rail shoes (sold seperately).
- Rugged Design - Specifically designed for railroad applications/environment.
- Water Resistant - No issues in heavy rain.
- Convenient Carry Case - Molded durable plastic carry case.
- Charge Time - As little as 2 hours from 0 - 100%.
- Battery Storage - Up to 2 months without service.
- Charger - Comes with 1 charger with standard 120 VAC.
Specifications
- Chuck - 270 RPM / 3/4" quick-disconnect
- Dimensions - 21" L x 6" W x 13" H
- Weight - 35 lbs (with battery)
- Battery Voltage - 36 VDC
- Charger Voltage - 120 VAC
- Battery Type - Lithium Ion 6 Ah with LED Battery Life Indicator Display
