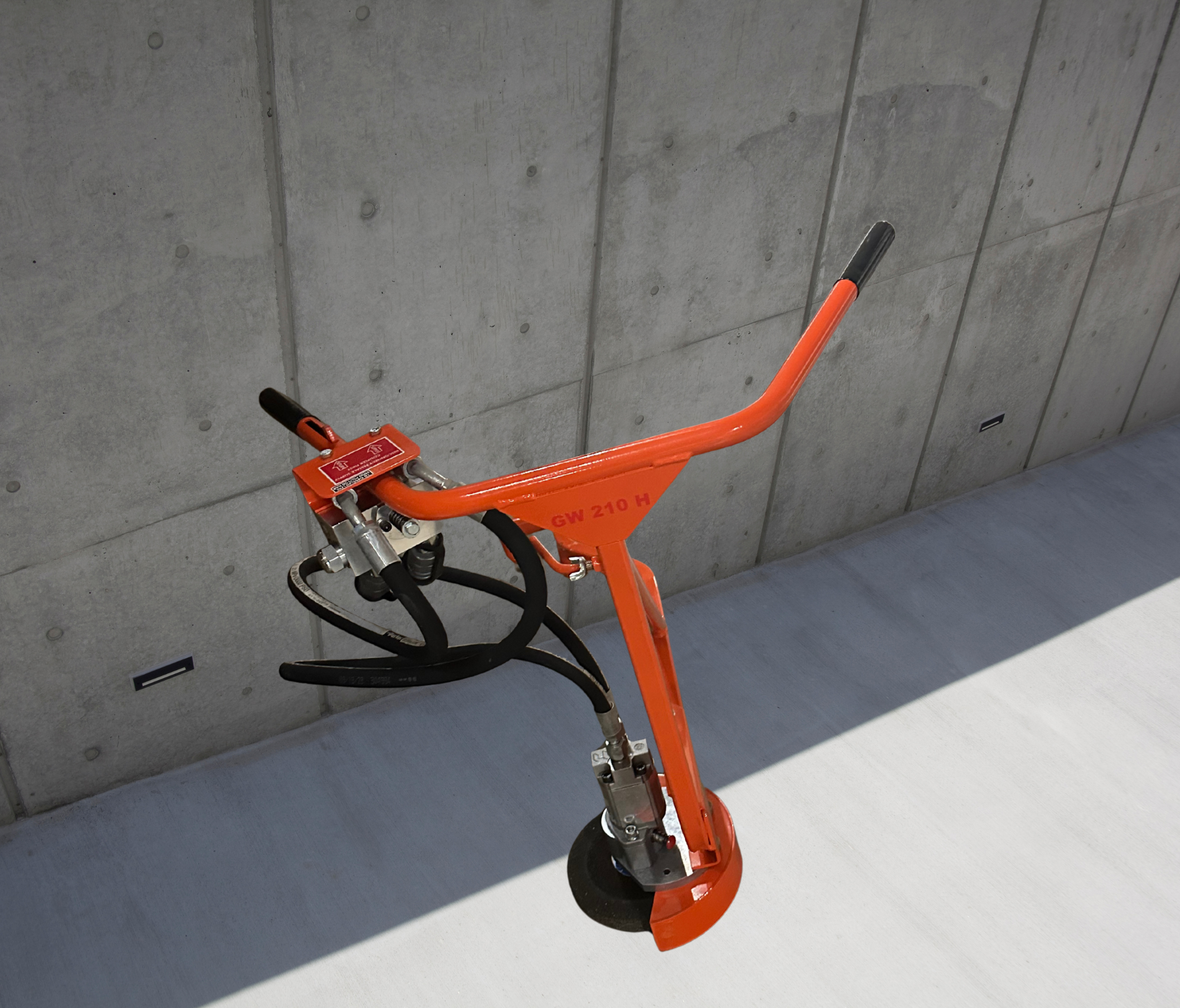

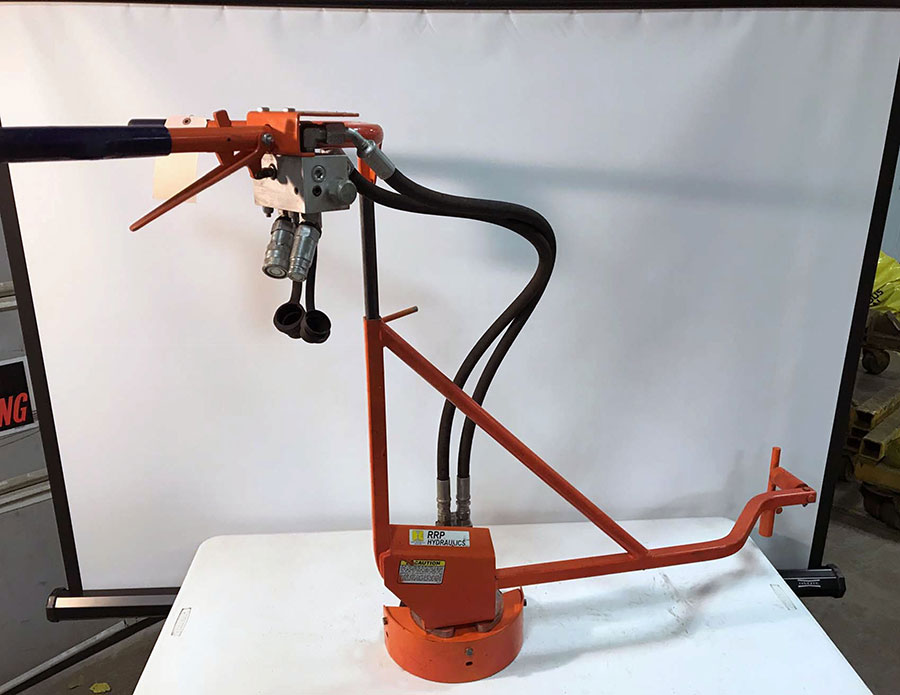

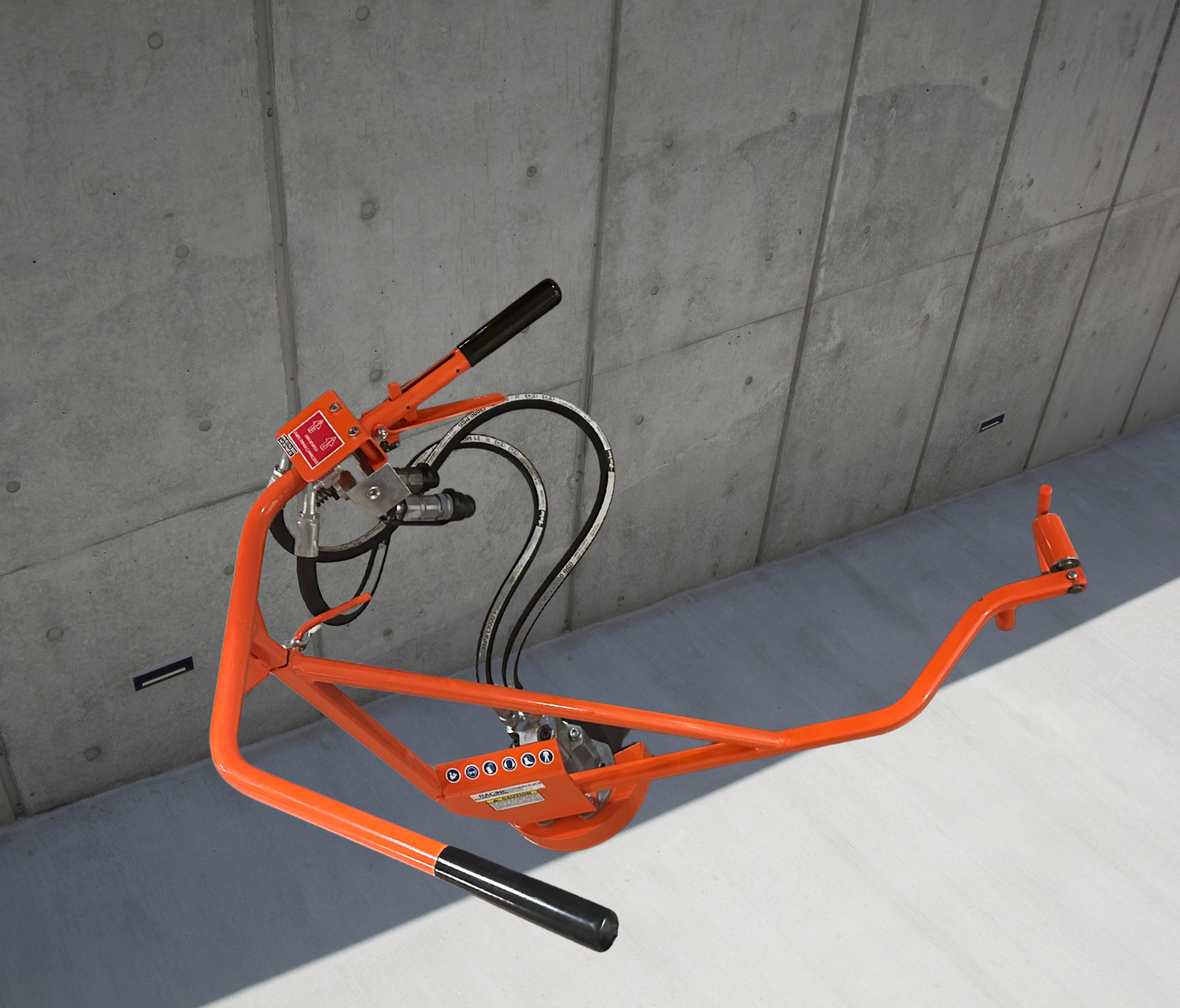

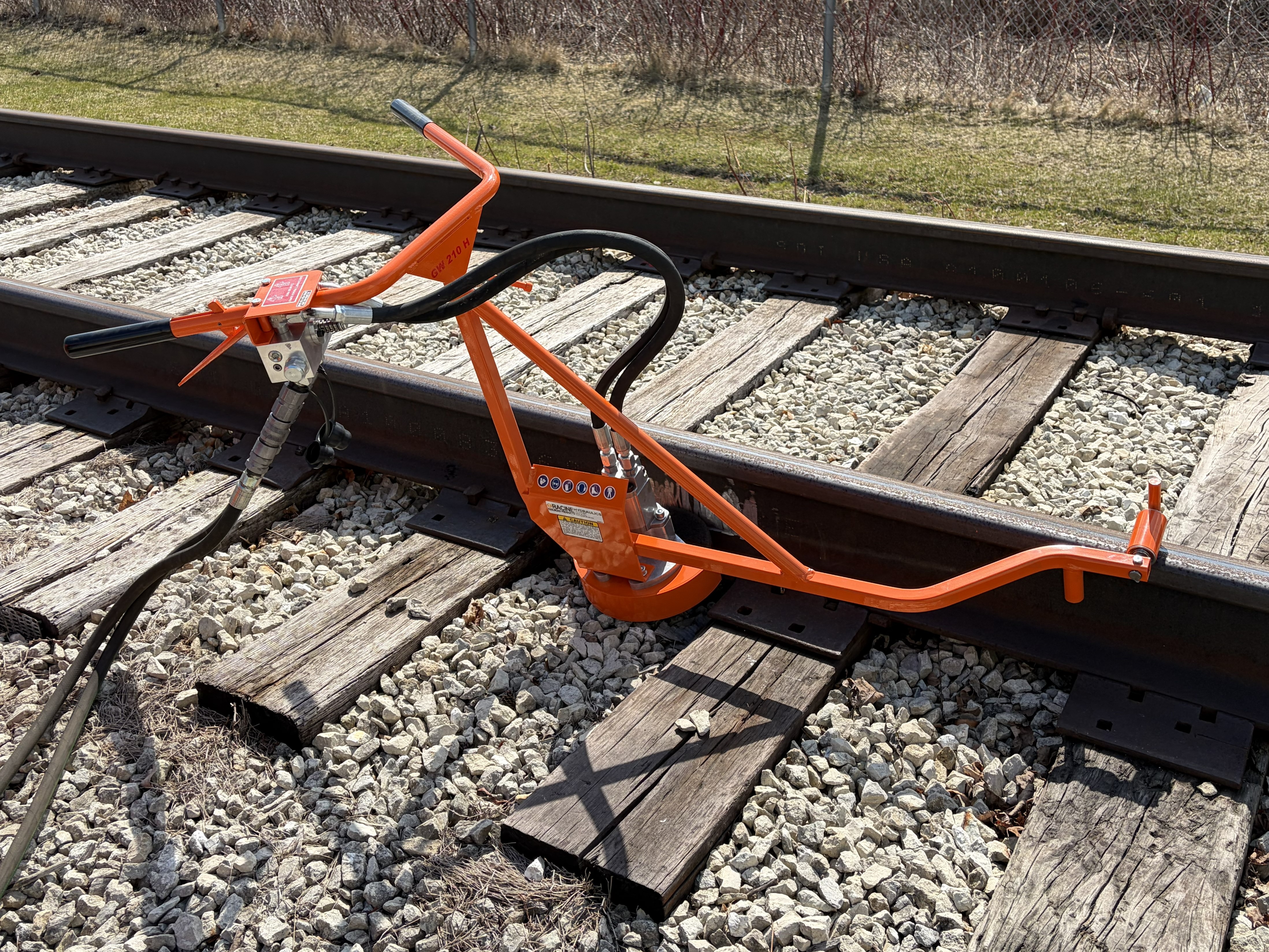

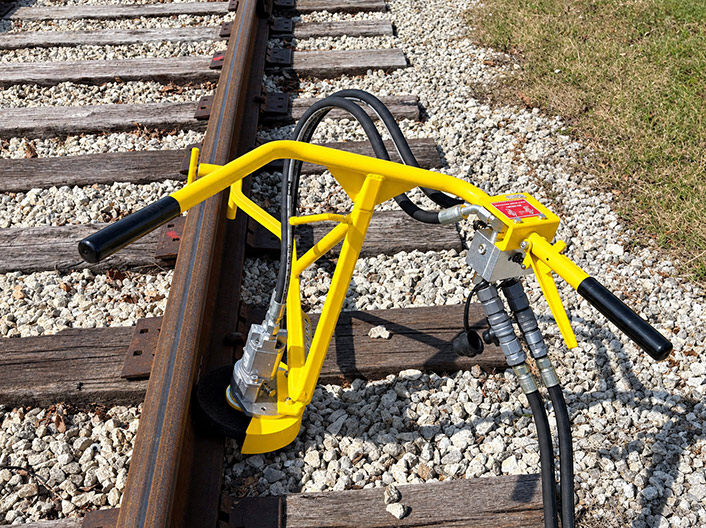

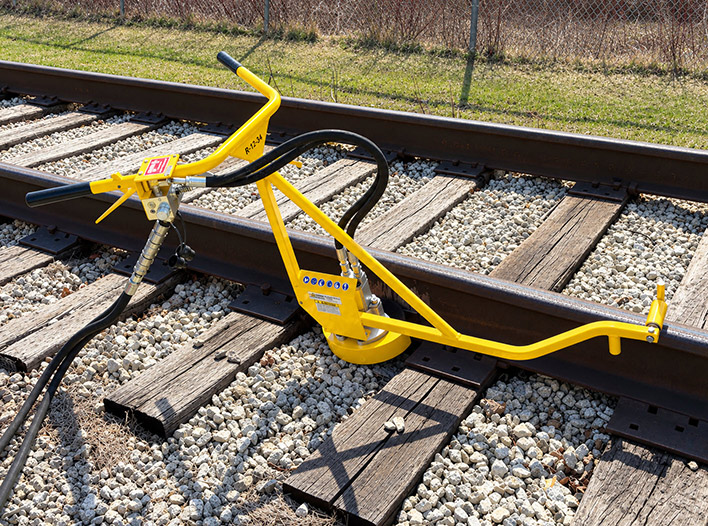

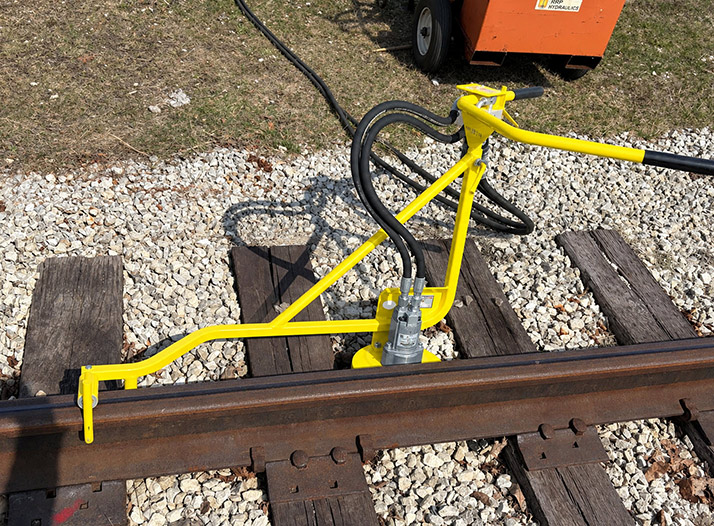

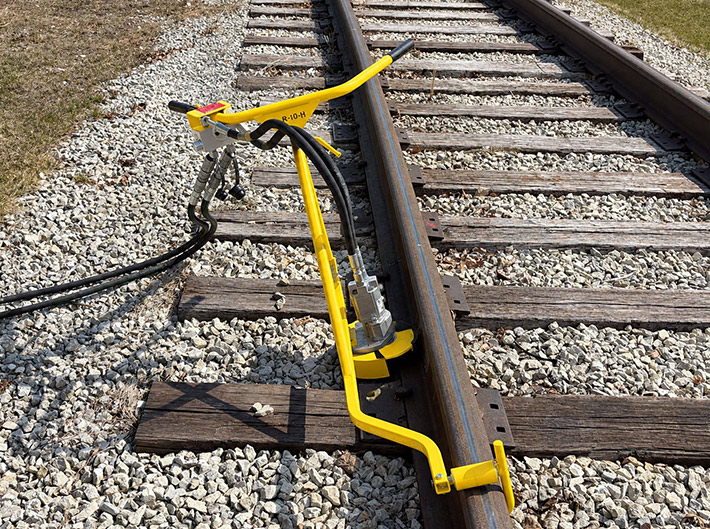

Hydraulic Stand Up Web Grinder
Product # 910106
Overview

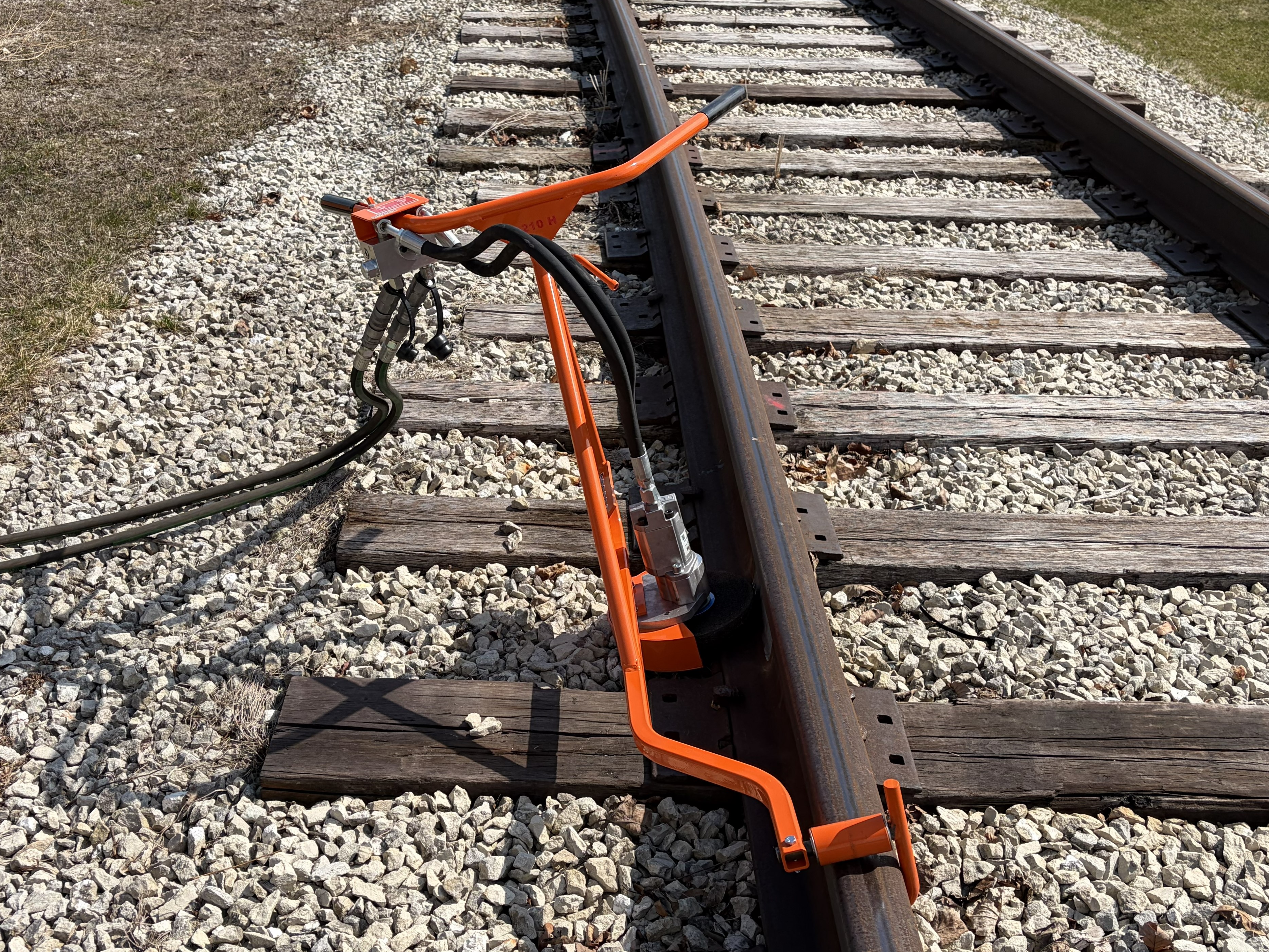

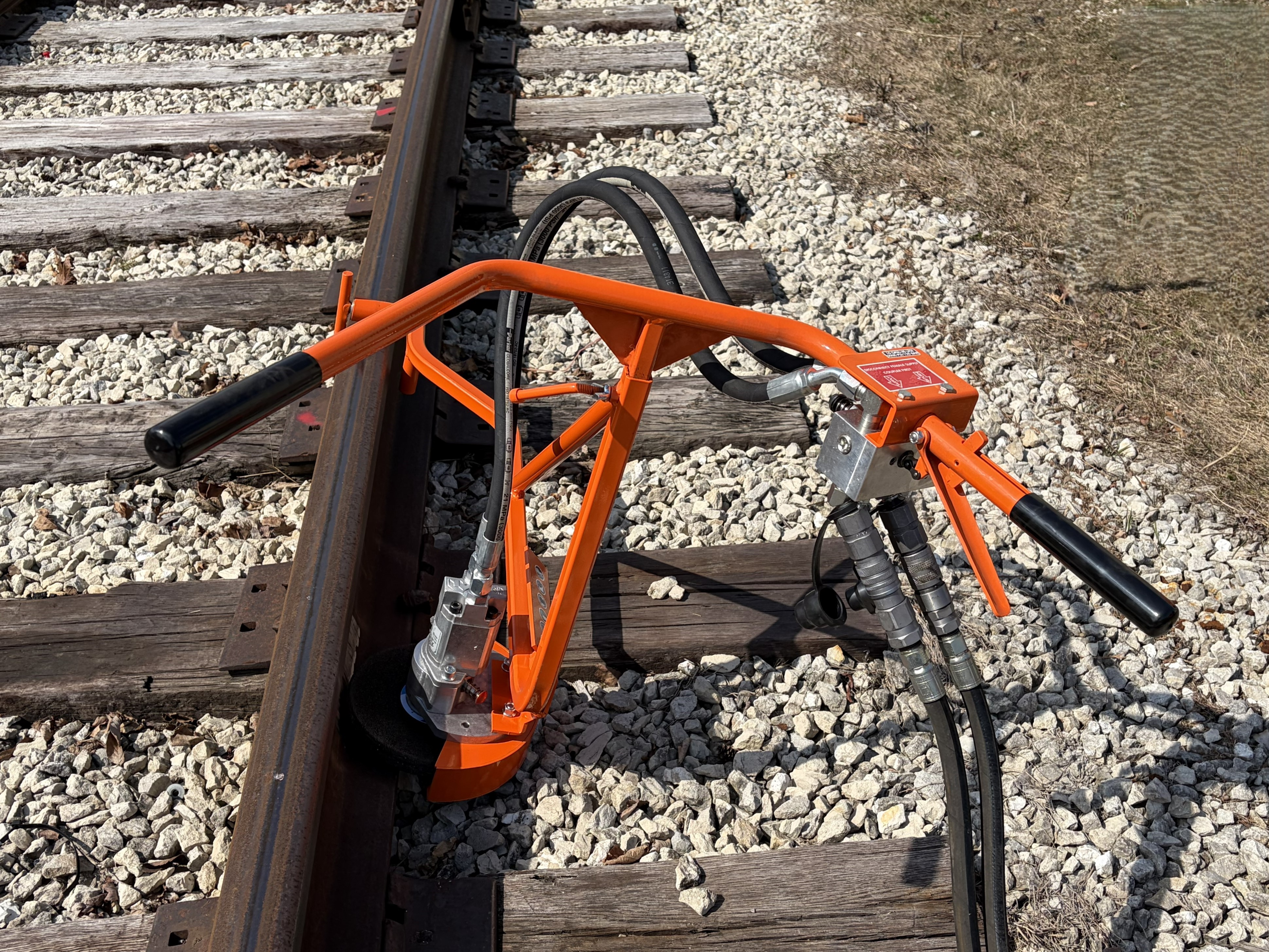

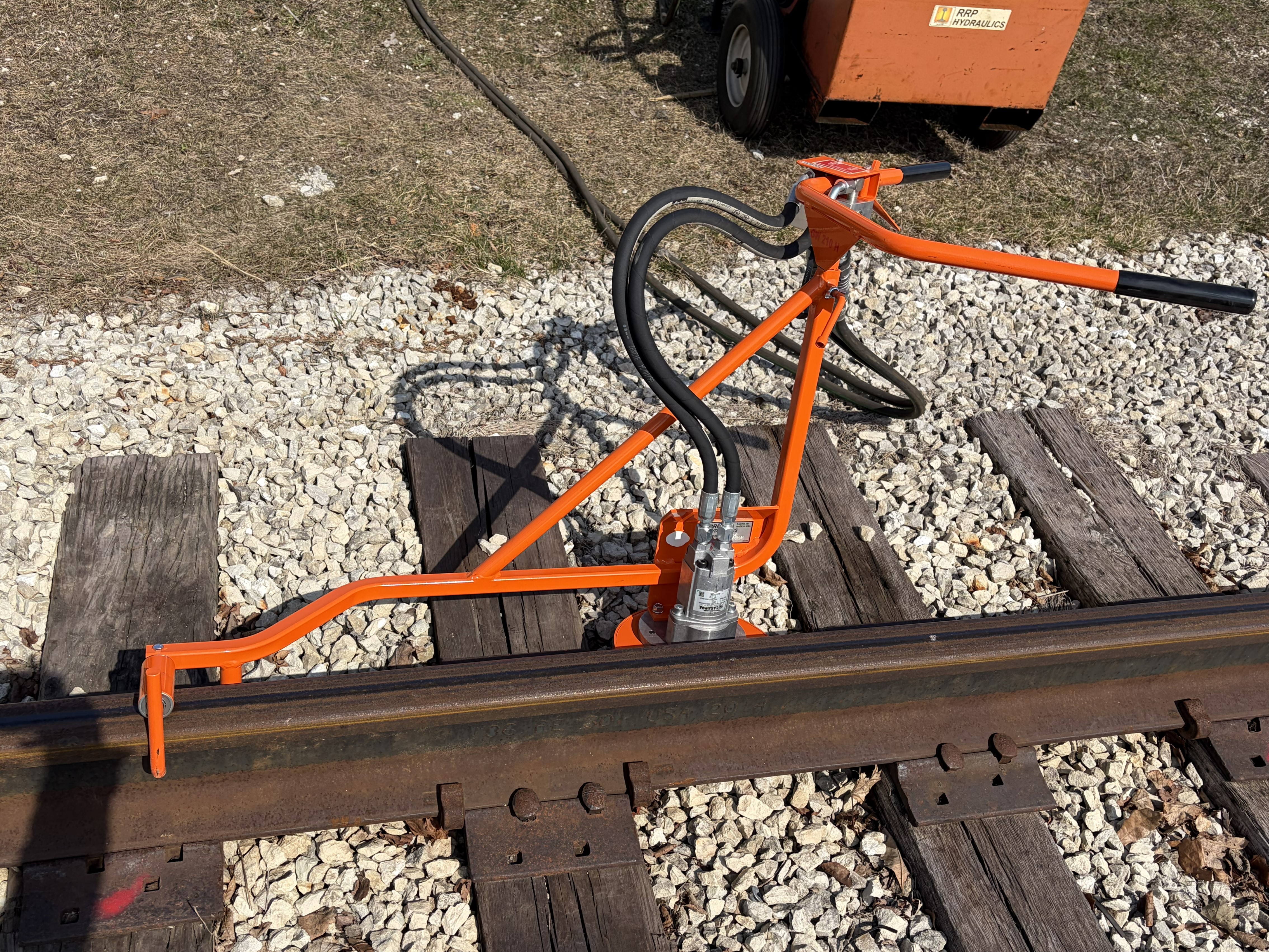

The Hydraulic Stand Up Web Grinder is designed to remove excess material from the welded area on the web of the rail. The grinder mounts to the rail for stability and better control of the tool.
Features
- A mounting system with a bearing roller for smooth operation
- The adjustable handle allows the operator to set it in the most comfortable position for them to use
- The two-position guard allows for the use of either 1" x 8" x 5/8" bore or 2" x 8" x 5/8" bore stones or wheels
- The motor is operated by a trigger on the handlebars, which, when released, stops the rotation of the motor
Specs
- Frame Type: Tube
- Hydraulic Rated Flow A-Port: 10 GPM @ 2000 psi (~38 LPM @ 138 bar)
Dimensions
- Length: 47" (119 cm)
- Width: 29" (74 cm)
- Height (adjustable): 27-38" (~69–97 cm)
- Weight (less stone): 34 lbs (15.4 kg)
Safety
- The trigger features a lock system to prevent accidental activation
