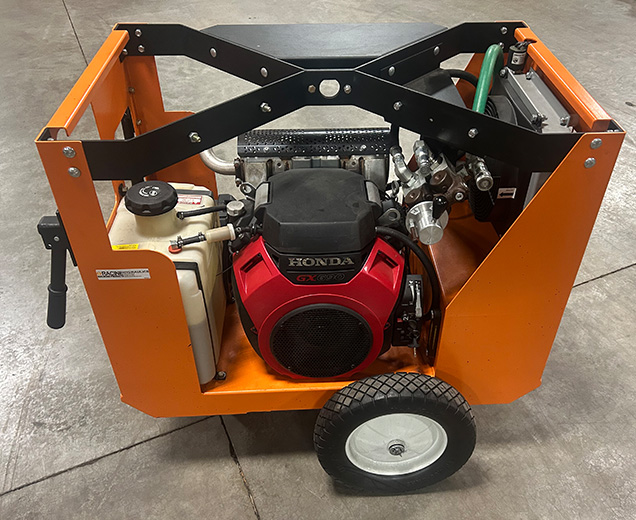

Racine Railroad Trak-Pak 3 Power Unit - Product Number 910202

Trak-Pak 3 Power Unit

Product # 910202

Now $7,700 (was $8,150)

Overview

The Trak-Pak 3 is equipped with a 22 hp Honda GX-690 electric start four-cycle engine that offers 22% more horsepower than other power units on the market. It offers a large 9-gallon hydraulic reservoir and heavy-duty oil cooler with a thermostatic electric fan to maintain a low hydraulic oil temperature, which will increase tool performance and extend the life of your tools.

Request A Quote Product Sheet Owner's Manual
Features
  • The Trak-Pak 3 comes standard with a combination digital engine hour meter/engine tachometer and hydraulic oil level
  • Its open design allows easy access to all components, including a large hydraulic tank cleanout
  • The large muffler offers excellent sound suppression for a quieter and safer work environment
  • A heavy-gauge steel frame, roll cage, and lifting bale are standard for the protection of components and easy maneuvering
Options
  • Wheel Assembly
  • Flow Divider
  • Hose Reel, RRP Part No: 716610
  • 50' Hose Set, RRP Part No: 465671
  • 60" Hose Jumper Set, RRP Part No: 465672
  • Wheel Assembly (Retrofit with wheels RRP Part No: 470162)
  • Pressure Gauge Assembly (Retrofit with kit RRP Part No: 470163)
  • Flow Meter Assembly (Retrofit with kit RRP Part No: 470164)
  • Hydraulic Selector Valve Assembly (Retrofit with kit RRP Part No: 470165)
  • Directional Control Valve Assembly
  • 2 Split Circuits
Specs
  • Engine: Honda GX-690
  • Fuel Tank Capacity: 7 gallons (~26 L)
  • Circuit: 5/10 GPM @ 2000 psi (~19/~38 LPM @ 138 bar)
  • Hydraulic Tank Fill Capacity: 9 gallons (~34 L)
Dimensions
  • Length: 40 in. (~101 cm)
  • Width: 24 in. (61 cm)
  • Height: 30 in. (~76.2 cm)
  • Weight: 380 lbs (~172.4 kg)
