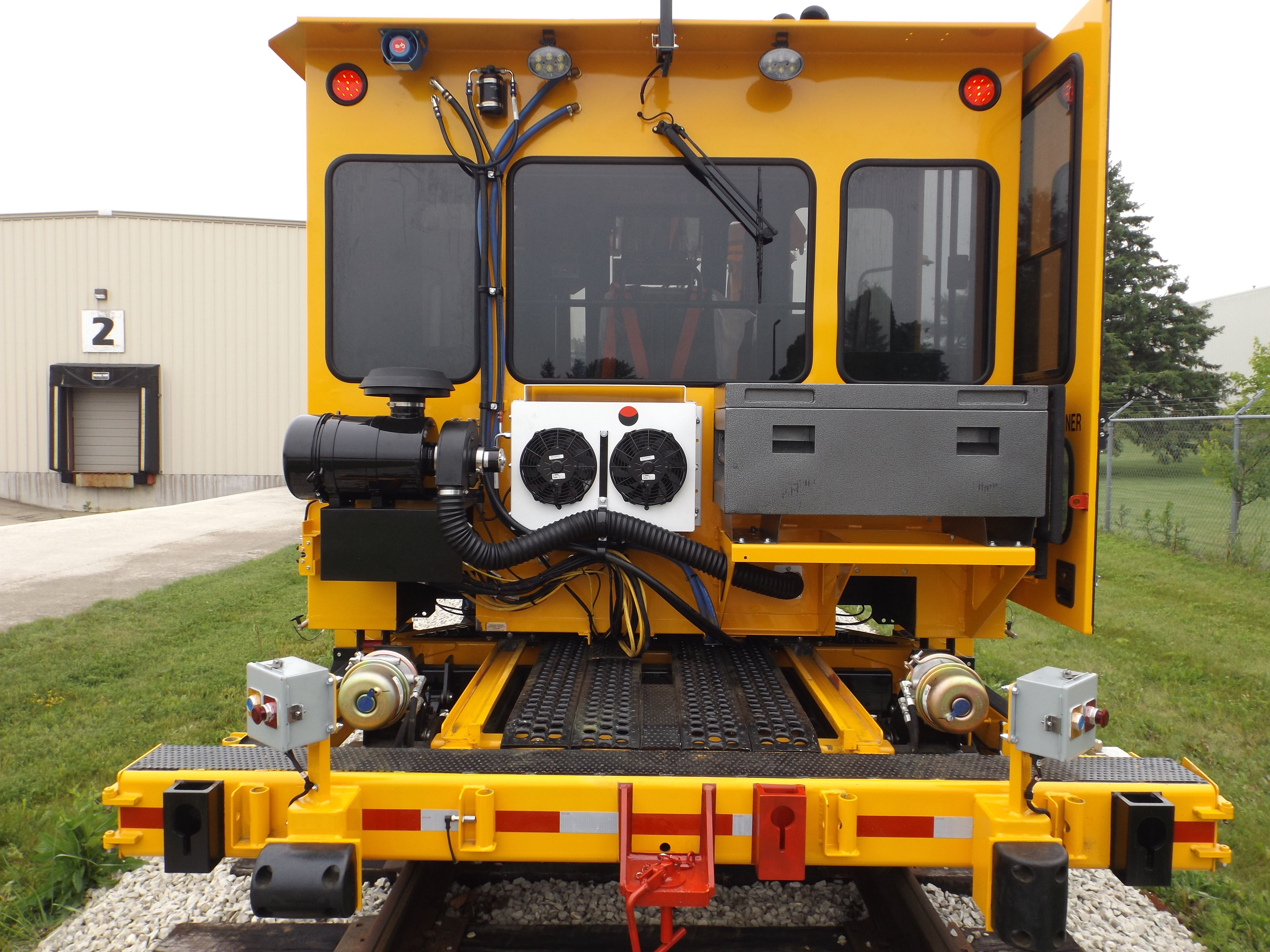

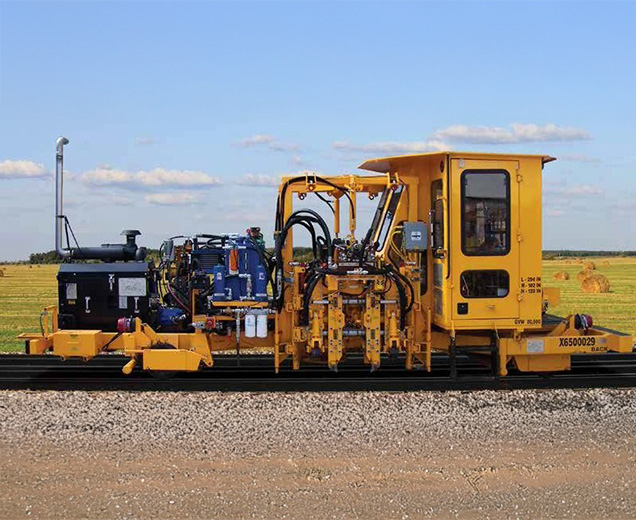

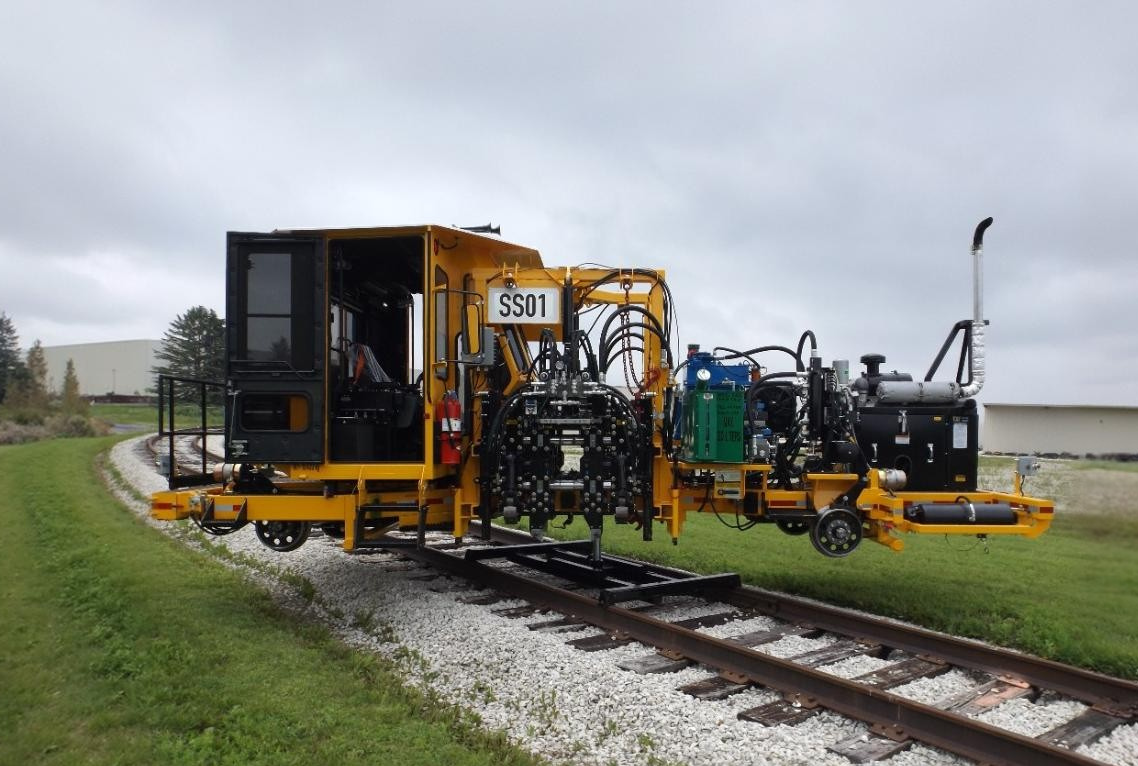

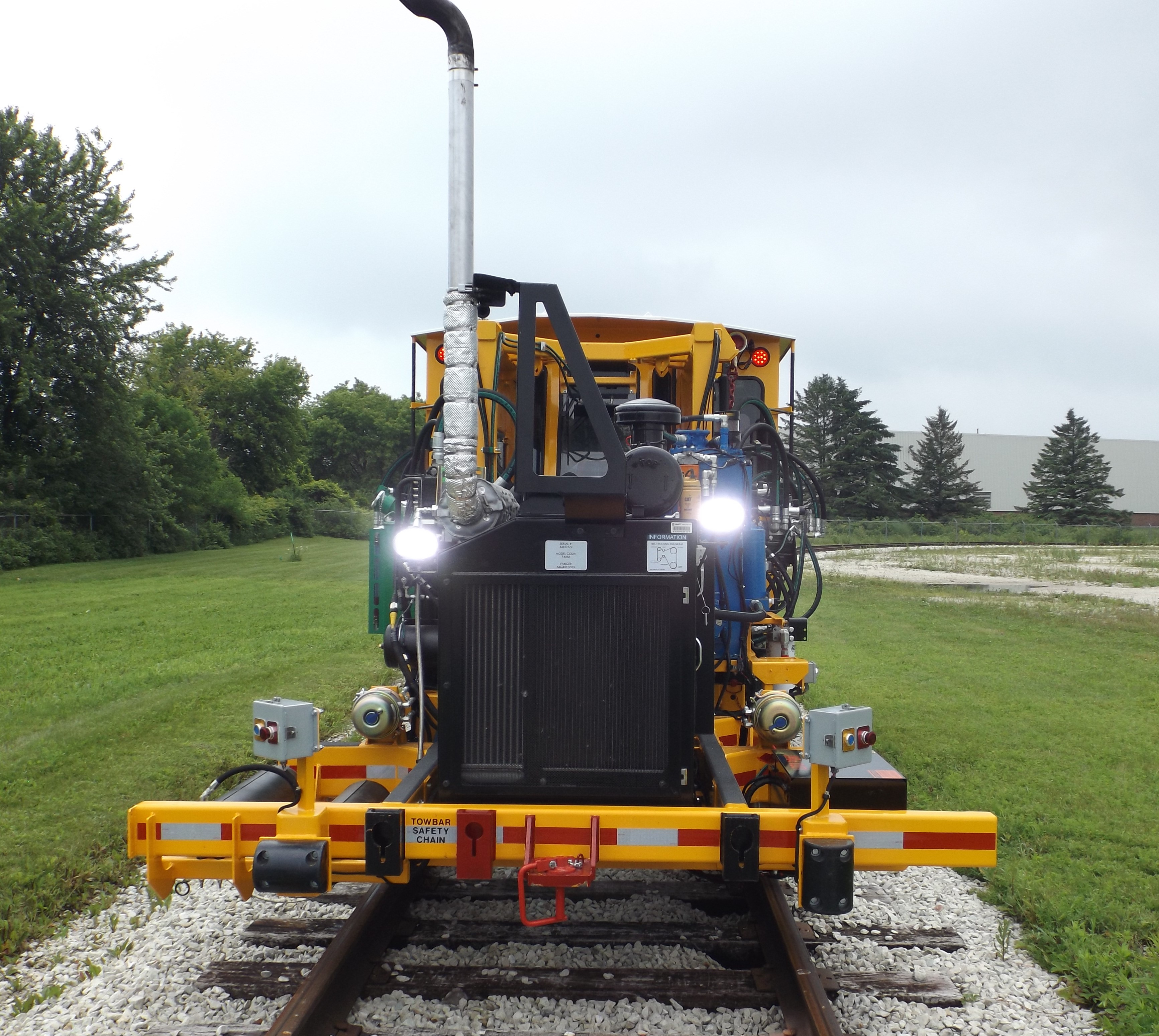

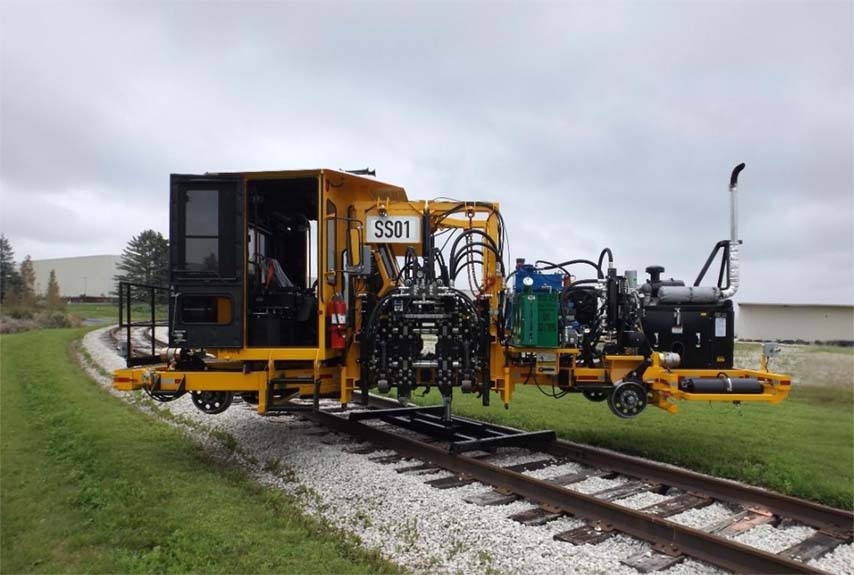

Rail Tie Straightener

RTS

Overview

The Racine Rail Tie Straightener precisely repositions skewed concrete ties under full crib conditions using joystick-controlled hydraulics and dual reference lasers. Its integrated ballast management system maintains track stability, while the high-performance diesel powertrain and enclosed operator cab ensure efficient, all-weather operation. The RTS can also be configured as ballast cribbers for out-of-face anchor application in a full crib.

Request A Quote Product Sheet
Features
  • Equipped with reference lasers to distinguish which ties need to be straightened
  • Joysticks control and activate the cribbing tools to displace any ballast and allow the tie to move laterally
  • Joysticks control the straightening tools, squaring up the tie
  • Equipped with a center H-Frame turntable that can rotate the machine 180 degrees in the opposite direction
  • Selective work/travel modes
Options
  • Non-DEF Tier 4 engine packages from brands like DEERE, CATERPILLAR, and CUMMINS
  • External emergency stop buttons
  • Variety of HVAC packages
  • Numerous other options include: Heated mirrors, hose racks, sleaved hydraulic plumbing, test stations, tinted safety glass, tool boxes, top off pumps, perimeter lights, etc.
  • Multiple cab sizes for additional seating
  • Different camera systems
  • RRP engineered custom options at request
Specs
  • Seating capacity: 3 (one operator, two passengers)
  • Travel Speed: 24 mph (~39 km/h); chain-driven propulsion system
  • Fuel Tank Fill Capacity: 55 gallon (~208 litres) with 2" diameter fill neck, bottom sump, and mechanical fluid level gauge adequate for a day’s work
  • Hydraulic Reservoir Fill Capacity: 58 gallons (~219.5 litres) with clean-out covers, guarded fluid level, and temperature gauges
  • 24V system with circuit breakers for lights and accessories
  • Cast steel wheels for long wear, self-aligning roller bearings, and axle locks for safe operation
  • Structural steel frame with derail skids, keyhole tie downs, and rubber bumpers
  • Ergonomic seat with joystick controls
Dimensions
  • Length: 24' 6" (~7.44 m)
  • Width: 8' 6" (~2.57 m)
  • Height: 9' 10" (~3.05 m)
  • Weight: 23,000 lbs (~10,433 kg)

*Dimensions vary based on user options

Safety
  • Enclosed cab with HVAC system, in-cab pressurizer for a safer work environment, and acoustical protection
  • Dual side egress optimizes safe operator exit in congested areas
  • Safety is enhanced using electric-powered controls that reduce operator fatigue
  • Workhead barriers cover exposed areas
