OTM Reclaimer
Overview

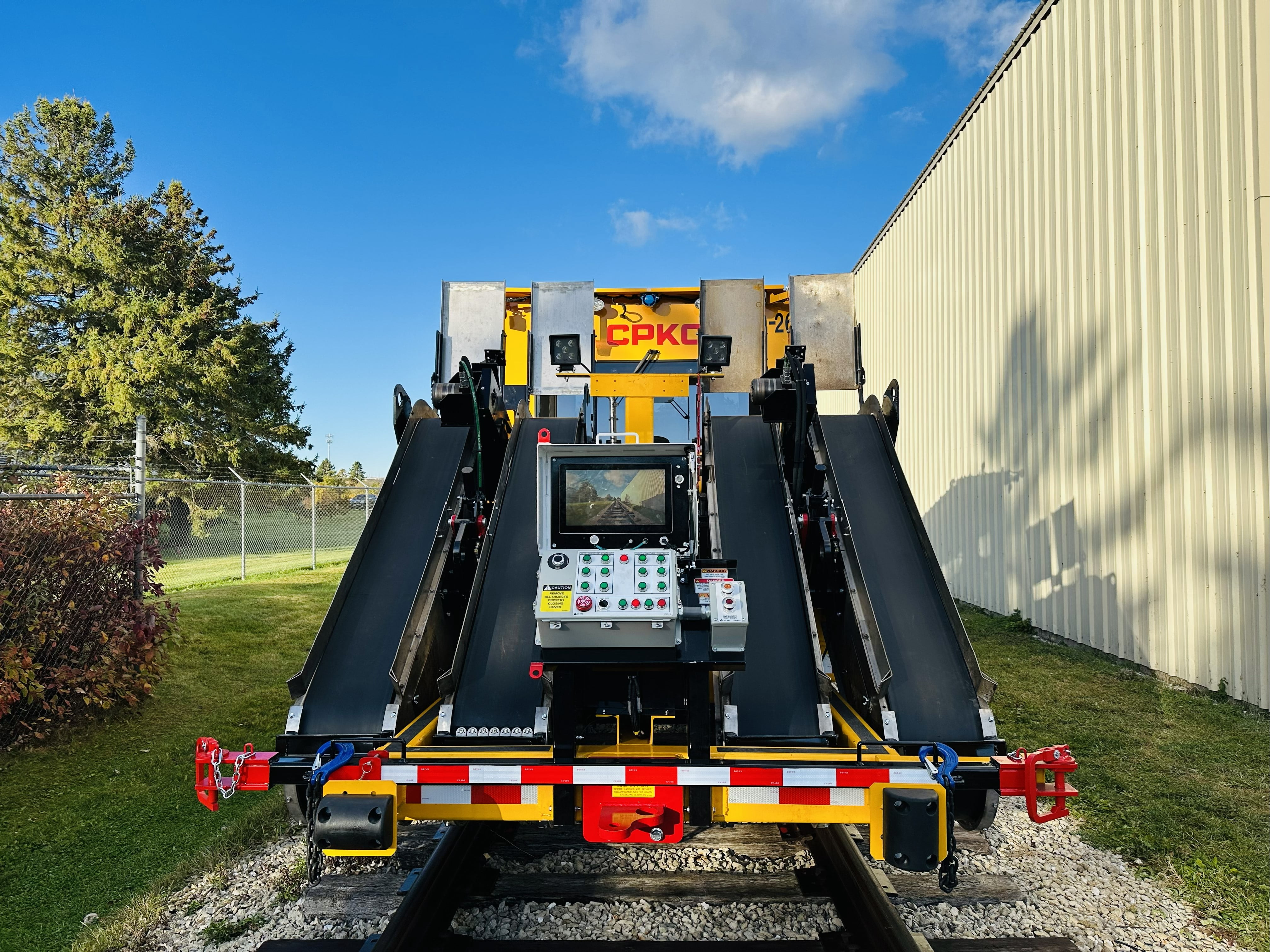

Designed for single-operator use and equipped with magnetic conveyors that efficiently transfer ferrous material from the track surface into an onboard hopper at speeds of up to 80 feet per minute. The hydraulically powered conveyor system includes two belts on the gauge side and two on the field side, each with independent lift capabilities to easily navigate track structures such as joint bars and crossings.
Features
- 71.5 cubic foot capacity hopper can discharge from either side of the machine
- Offers a 360-degree view for and aft
- External Conveyor Control with front and side camera views
- Jointbar detector
- Accessible workhead components for routine maintenance
Specs
- Seating Capacity: 3 (one operator, two jumpseats)
- Travel Speed: 24 mph (~39 km/h); chain-driven propulsion system
- Fuel Tank Fill Capacity: 35 gallons (~159 litres)
- Hydraulic Reservoir Fill Capacity: 72 gallons (~327 litres) (available options: Case Drain Filter, Pressure Filter, & Return Filter)
- 24V DC system with circuit breakers for lights and accessories
- Structural steel frame with derail skids, keyhole tie downs, rubber bumpers
- Cast steel wheels for long wear, self-aligning roller bearings, and axle locks for safe operation
Dimensions
- Length: 31' 2" (~ 9.5 m)
- Width: 8' 6" (~ 2.6 m)
- Height: 10' 1" (~ 3 m)
- Weight: 26,000 lbs (~ 11,793 kg)
*Dimensions vary based on user options
Safety

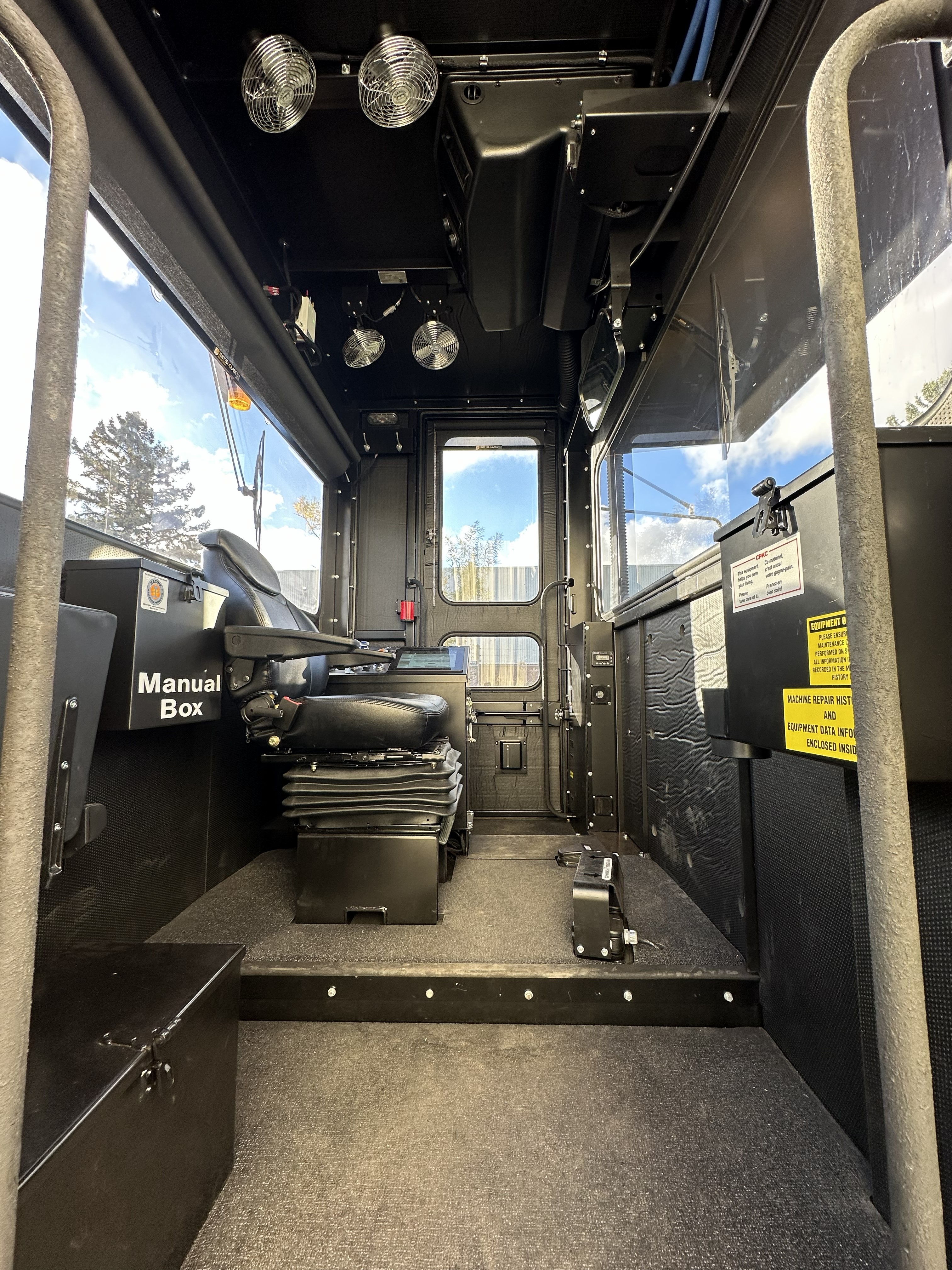

- Enclosed cab with HVAC system, in-cab pressurizer for a safer work environment, and acoustical protection
- Dual side egress optimizes safe operator exit in congested areas
- Safety is enhanced using electric-powered controls that reduce operator fatigue
Discover Related On Track Equipment:

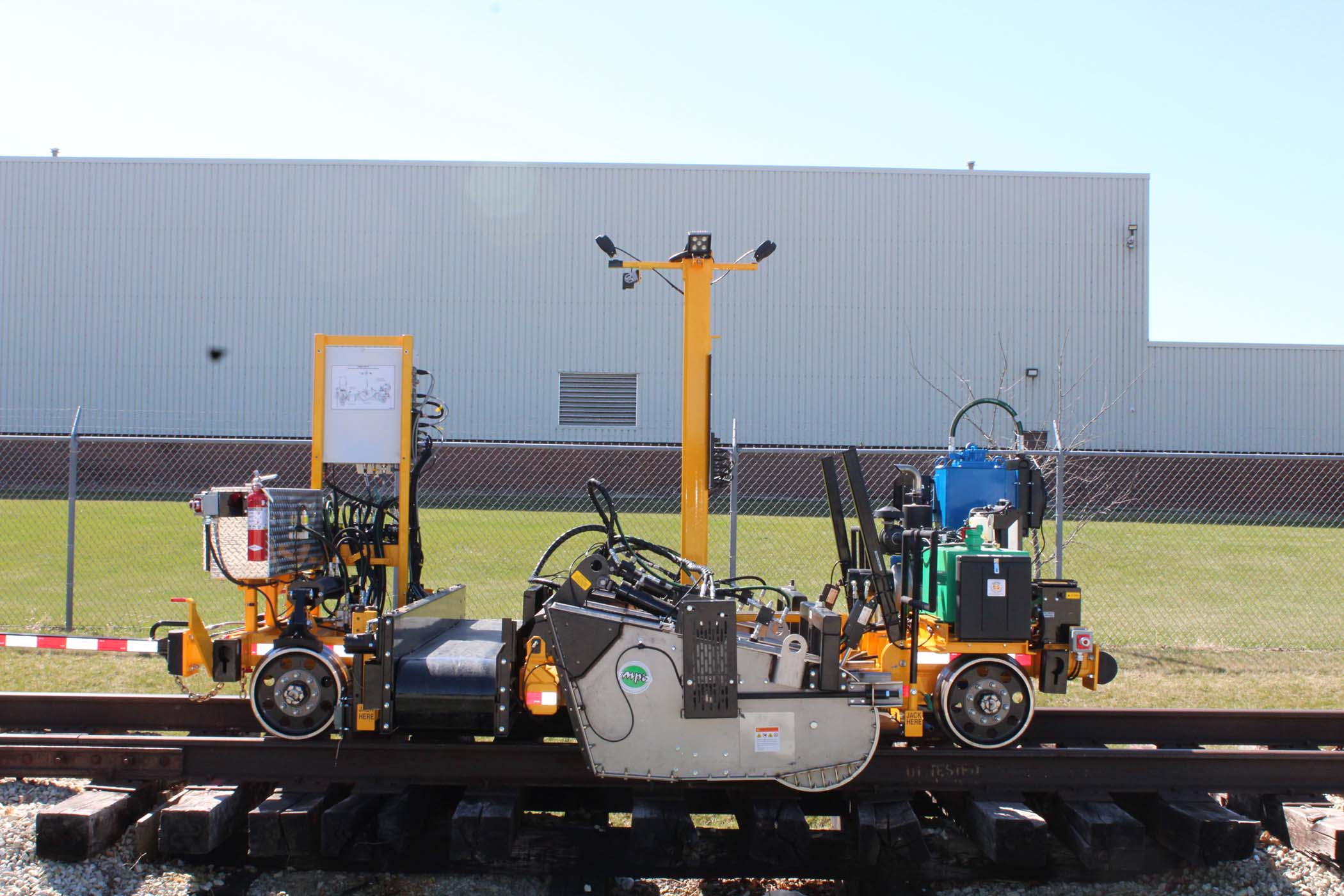

Tow Behind OTM Reclaimer
