Tow Behind OTM Reclaimer
TOWD
Overview

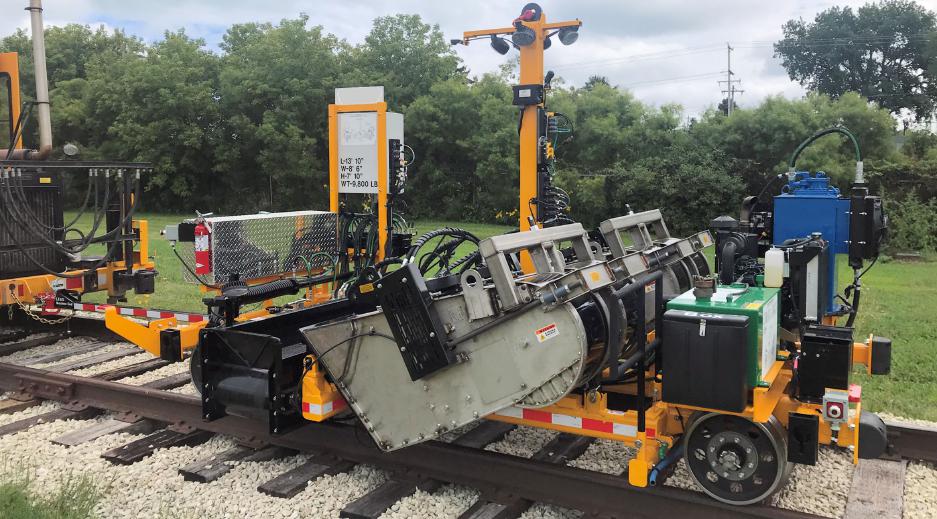

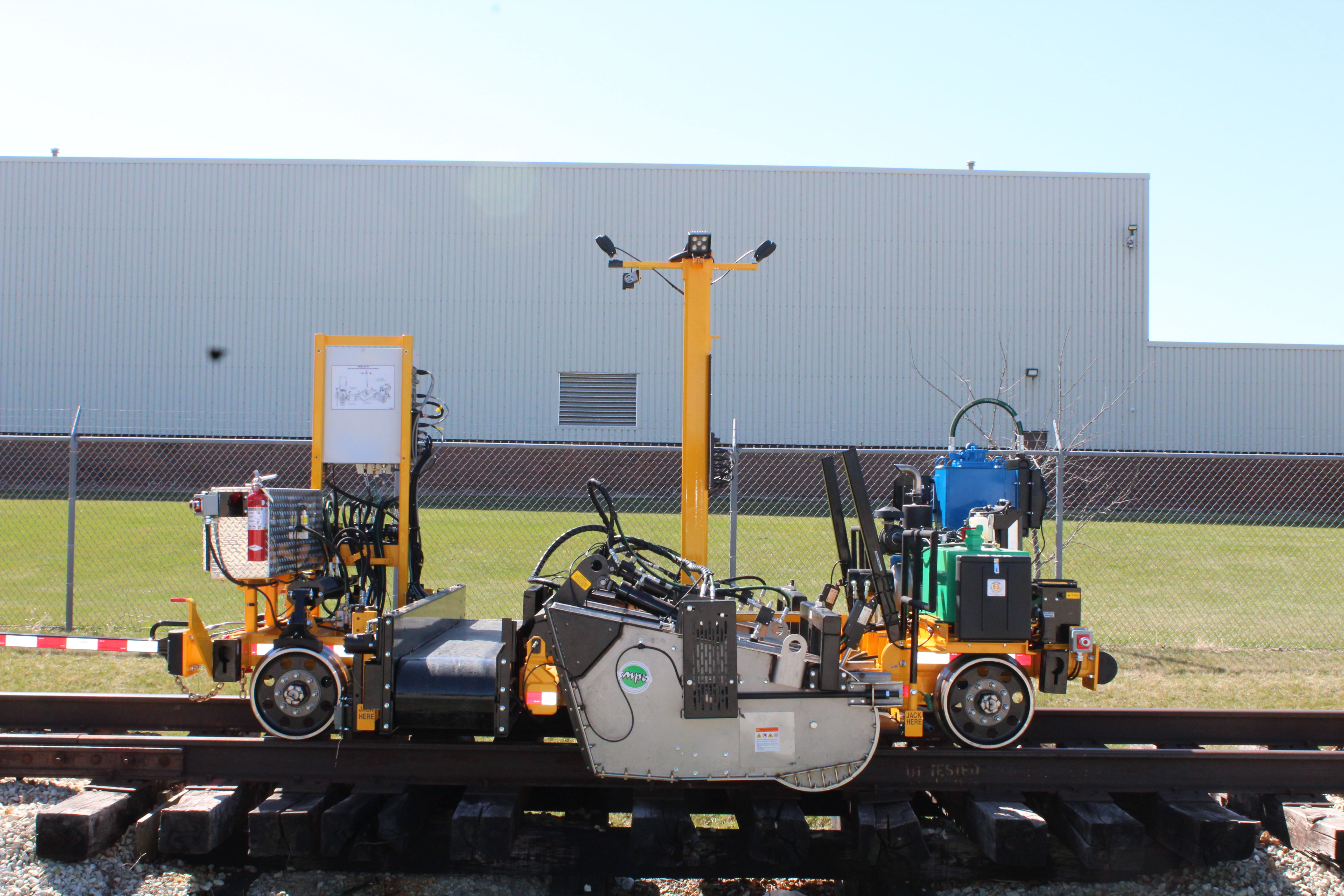

The Racine Tow-Behind Reclaimer is an unmanned magnetic unit designed to recover material from both the field and gauge sides of the track.
Features
- 4 magnetic conveyors with independent lift capability
- Hoppers include detectors to raise conveyors to clear track structures such as joint bars, crossings, and other obstacles
- Hoppers can discharge individually or together to dump on either side of the machine
Specs
- Fuel Tank Fill Capacity: 15 gallons (~56.8 litres)
- Hydraulic Reservoir Fill Capacity: 11.6 gallons (~44 litres) with Return Filter
- 12V DC system with circuit breakers for lights and accessories
Dimensions
- Length: 13’10” (~4.2m)
- Width: 8' 5" (~2.6m)
- Height: 7’10” (~2.4m)
- Weight: 8,400 (~3810 kg)
*Dimensions vary based on user options
Safety
- Jointbar detector
- Can be remotely operated from the towing machine’s cab, so the operator never has to exit during reclaiming or dumping
