Dual Anchor Adjuster

DAA

Overview

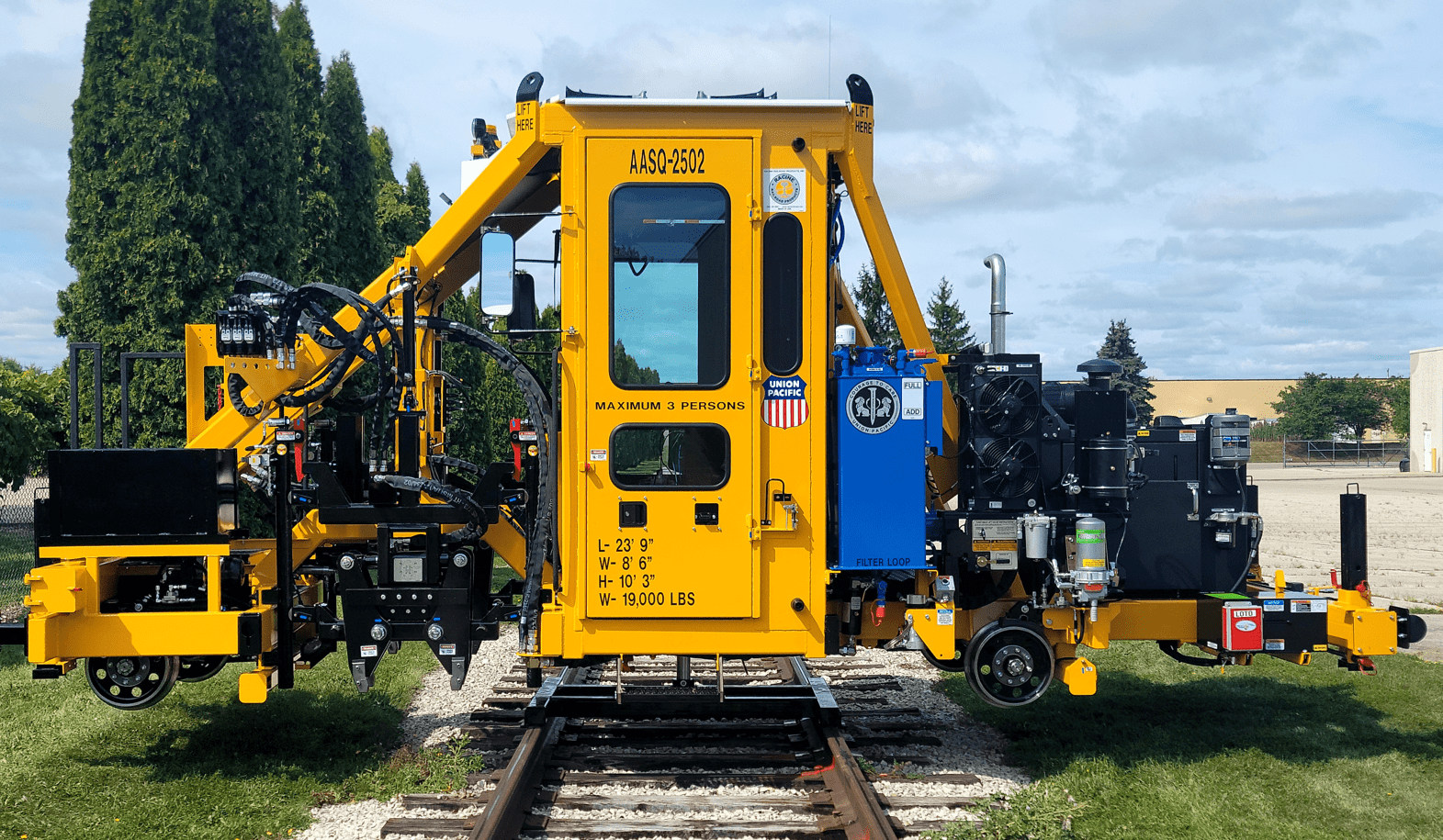

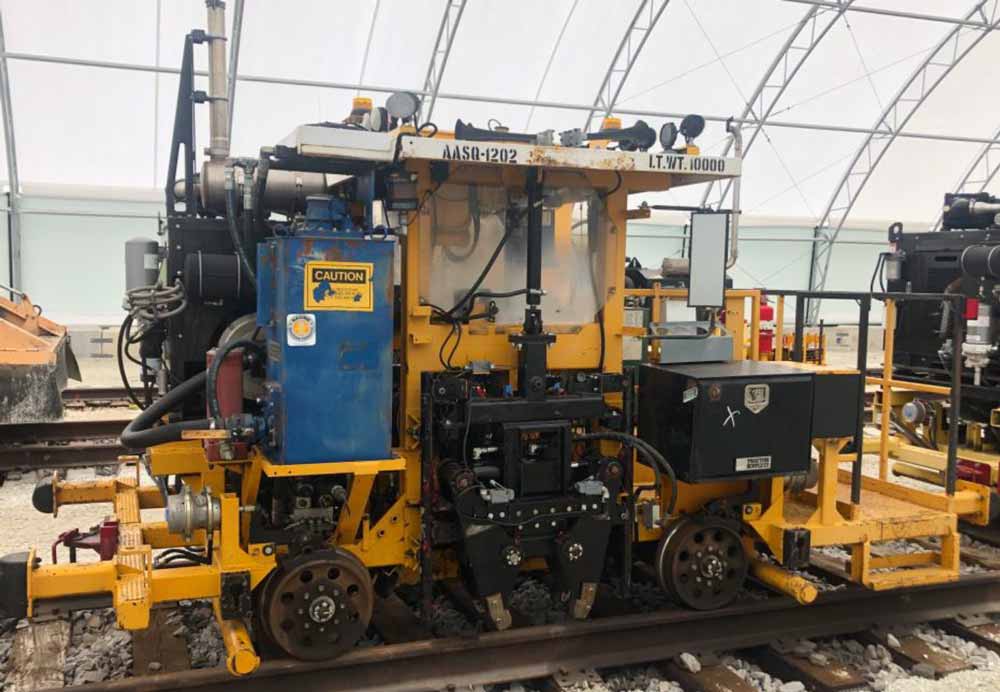

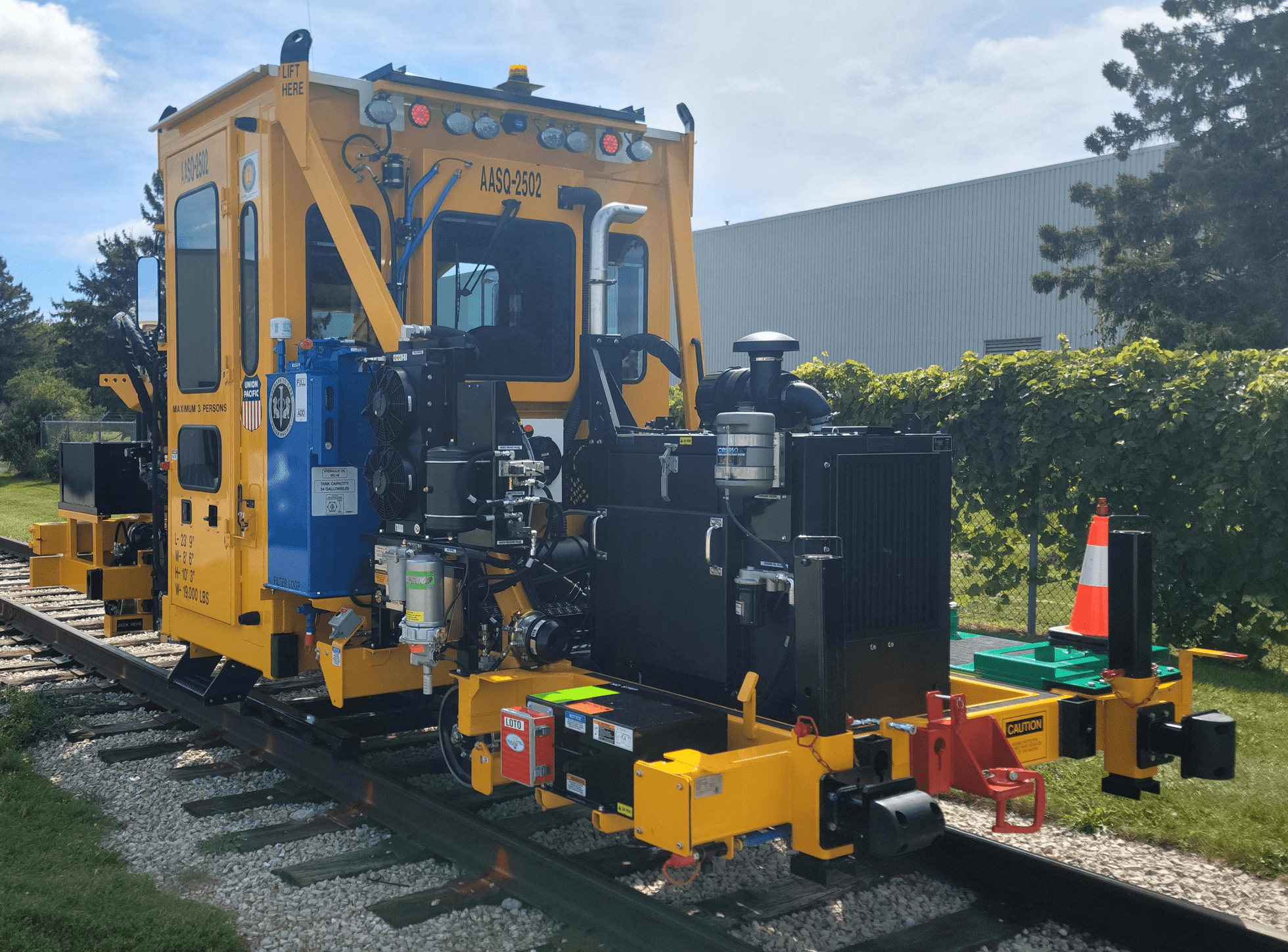

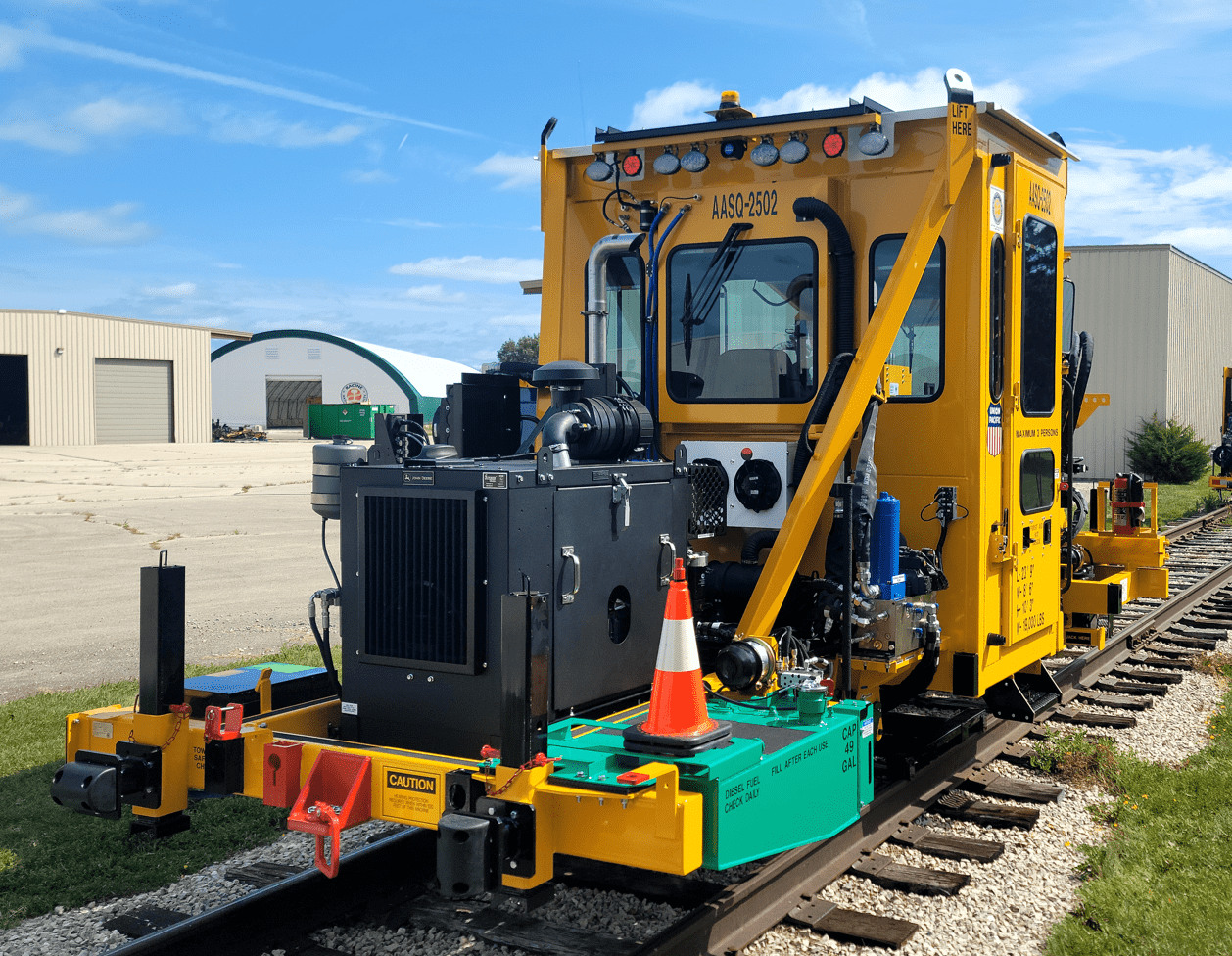

The Racine Railroad Products Dual Anchor Adjuster is a single-operator machine designed to squeeze rail anchors on both rails simultaneously or independently. Engineered for precision and efficiency, it repositions anchors without removal, reducing wear and improving track maintenance productivity. The machine uses a horizontally mounted cylinder with four operating arms to deliver a consistent squeeze force across varied rail sizes. The Dual Anchor Adjuster streamlines anchor adjustment for faster, more efficient track work.

Request A Quote Product Sheet

Features

Horizontally mounted cylinder that controls operating arms, providing a highly leveraged, positive, consistent, squeeze force
Easy access to both spacer plates and spacer blocks ensures quick changeout for either 5 1/2" or 6" rails on all anchor types throughout the head's 15" range
Many components are interchangeable with the Dual Anchor Spreader (DAS) or Dual Anchor Adjuster Spreader (DASP)
Two joysticks control each workhead independently
Excellent 360-degree visibility fore and aft when track traveling
The MD4 control system can easily be changed from one workhead setup to another. Also used to help troubleshoot machine maintenance issues
Dynamic touchscreen interface for detailed in-depth machine diagnostics and settings controls
Advance load-sense pump controls allow for NON-DEF engine power, saving costs and being more environmentally friendly
Easy touchscreen controls with workhead adjustments from the operator seat, saving time and offering a safer way to make machine adjustments
Onboard electrical system diagnostics to simplify troubleshooting and lessen downtime
Remote program updates and remote troubleshooting with built-in telematics allow our technicians to help troubleshoot and lessen downtime (within cell range)
Smart hydraulic valves with self-diagnostics and maintenance screens increase flexibility, reliability, and reduce parts inventory by using the same control valve for every function
Equipped with a center H-Frame turntable that can rotate the machine 180 degrees in the opposite direction
Accessible workhead components for routine maintenance
Smart cylinder for consistent, easy-to-adjust workhead height control
Selective work/travel modes

Options

Non-DEF Tier 4 engine packages from brands like DEERE, CATERPILLAR, and CUMMINS
Tooling for all anchor types in 5", 5 1/2", or 6" rails
External emergency stop buttons
Variety of HVAC packages
Numerous other options include: Heated mirrors, hose racks, sleaved hydraulic plumbing, test stations, tinted safety glass, tool boxes, top off pumps, perimeter lights, etc.
Different camera systems
3rd rail versions of machines at request
RRP engineered custom options at request

Specs

Seating Capacity: 3 (one operator, two passengers)
Travel Speed: 25 mph (~41 km/h); chain-driven propulsion system
Fuel Tank Fill Capacity: 50 gallons (~227 litres) with 2" diameter fill neck, bottom sump, and mechanical fluid level gauge
Hydraulic Reservoir Fill Capacity: 51 gallons (~193 litres) with clean-out covers, guarded fluid level, and temperature gauge
24V system with circuit breakers for lights and accessories
Cast steel wheels for long wear, self-aligning roller bearings, and axle locks for safe operation
Structural steel frame with derail skids, keyhole tie downs, and rubber bumpers

Dimensions

Length: 22' 7" (~6.9 m)
Width: 8' 5" (~2.6 m)
Height: 10' 2" (~3 m)
Weight: 19,000 lbs (~8,618 kg)

*Dimensions vary based on user options

Safety

Enclosed cab with HVAC system, in-cab pressurizer for a safer work environment, and acoustical protection
Dual side egress optimizes safe operator exit in congested areas
Workhead barriers cover exposed areas
Safety is enhanced using electric-powered controls that reduce operator fatigue
