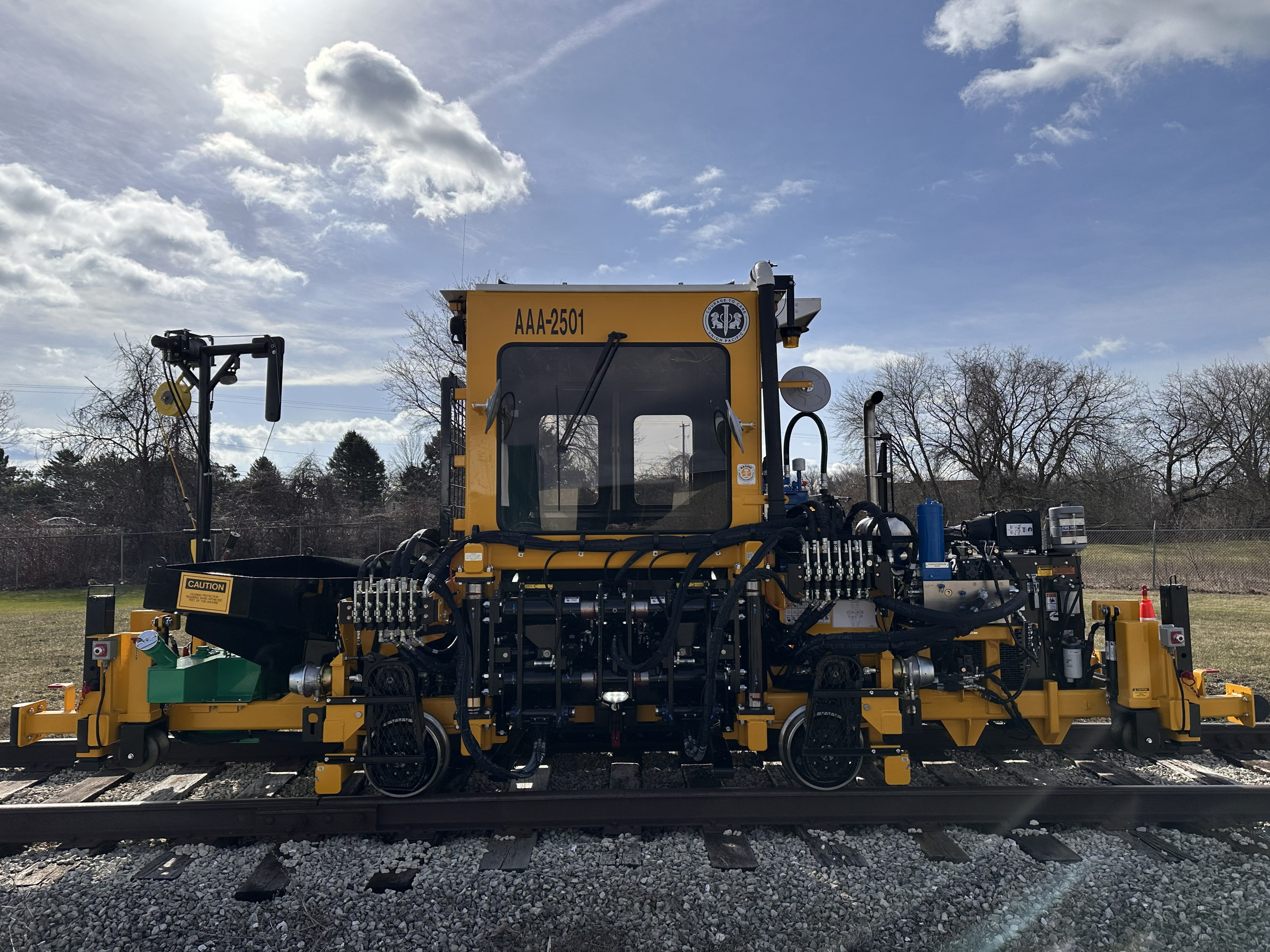

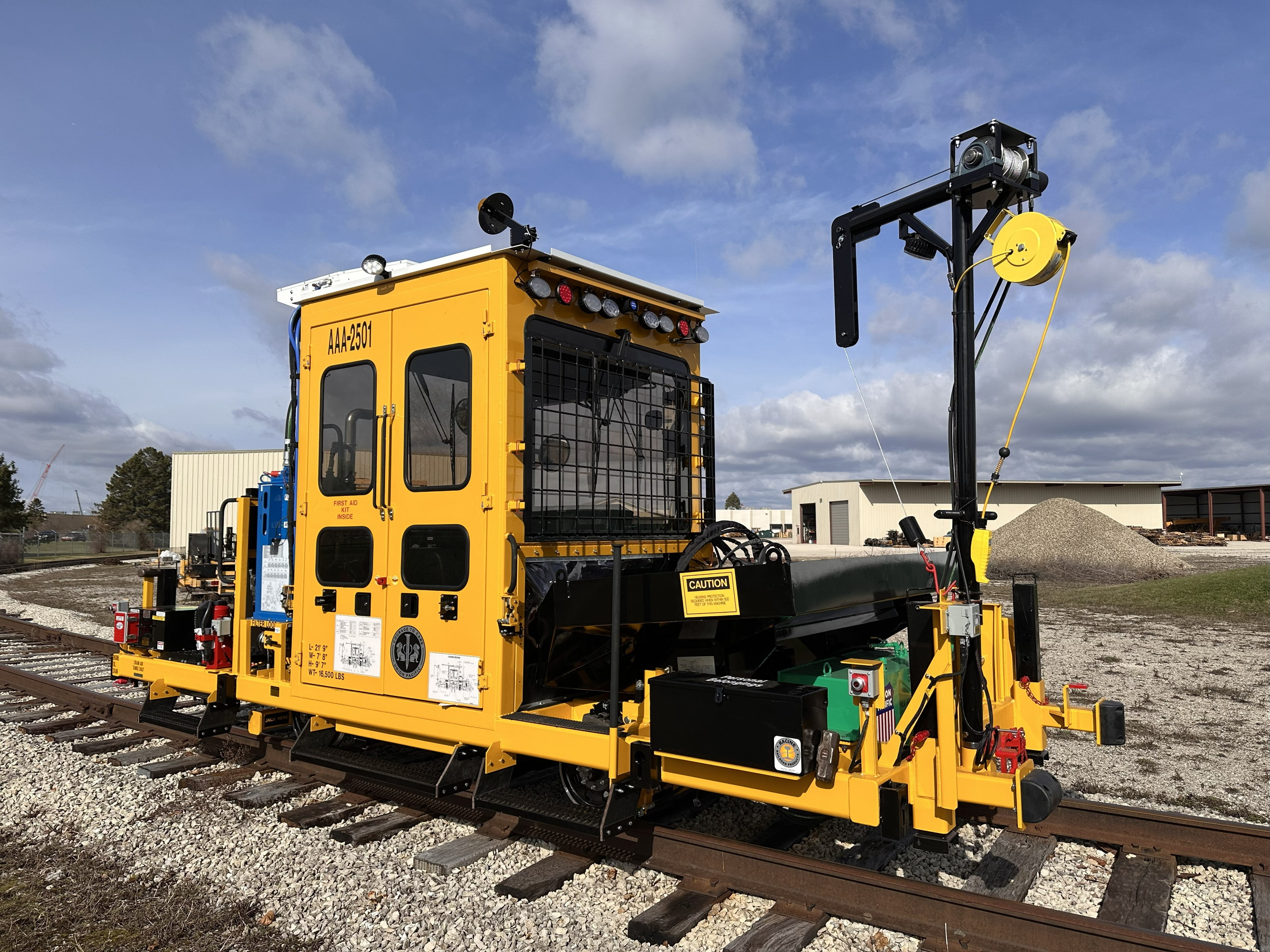

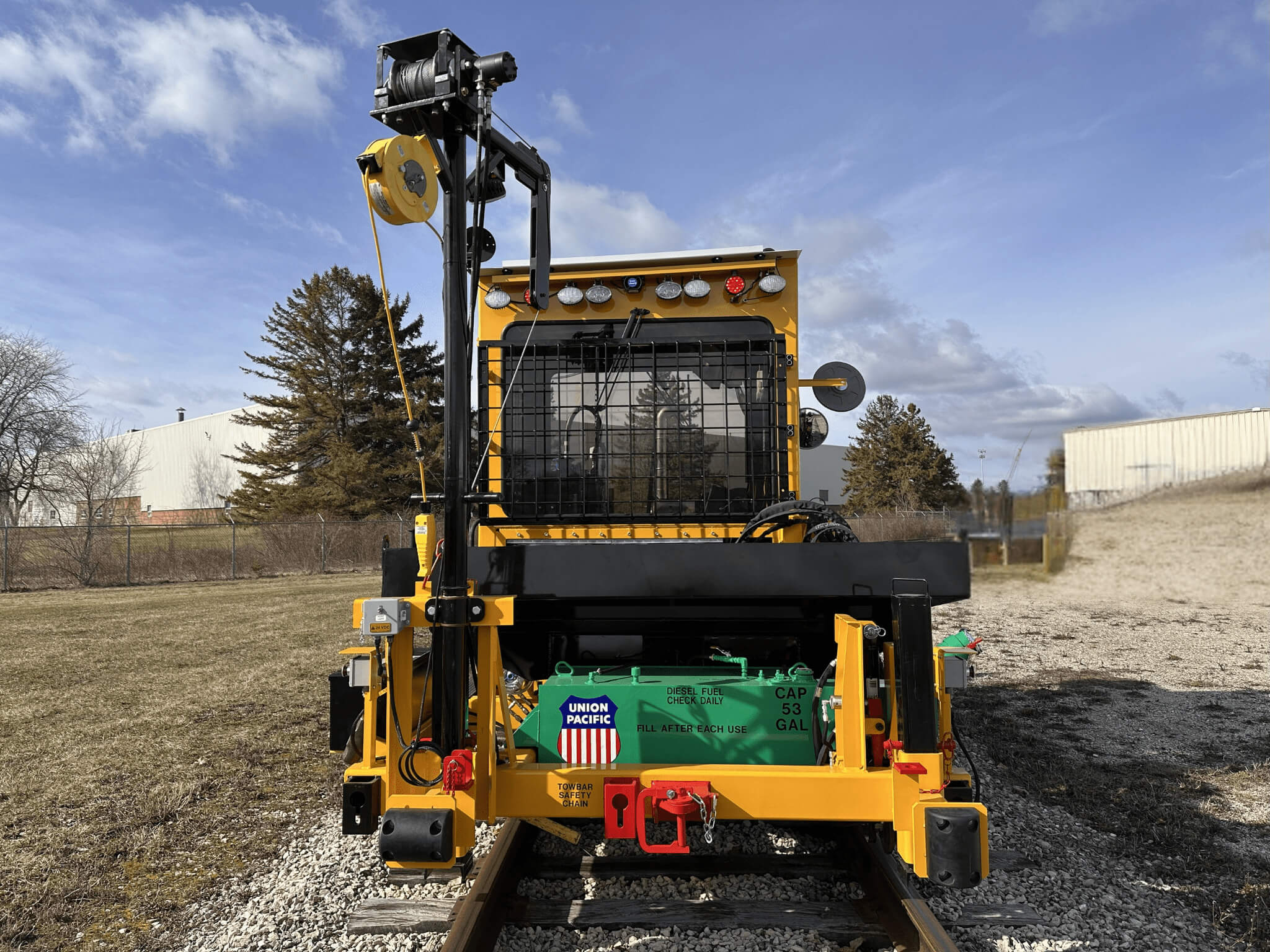

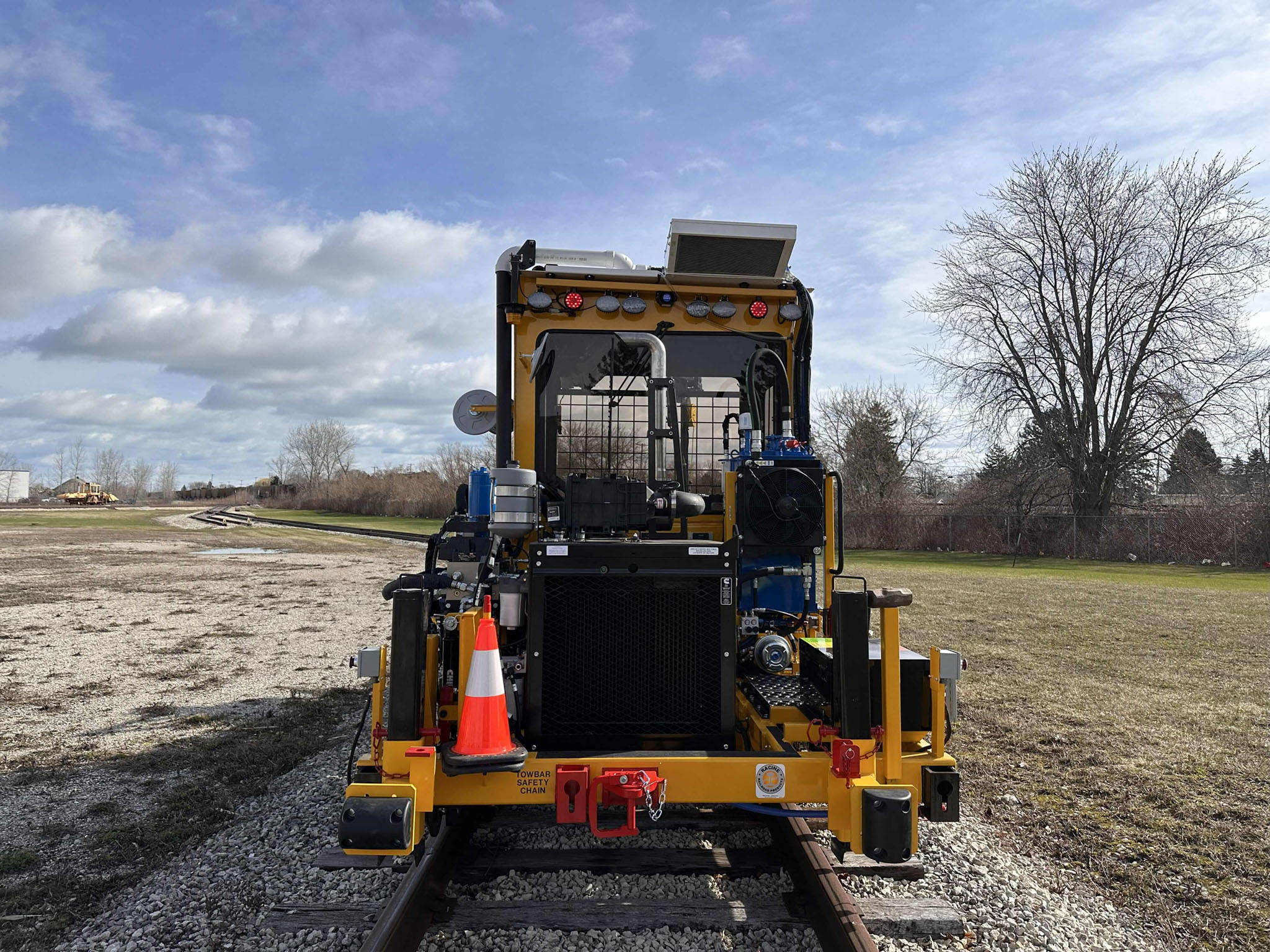

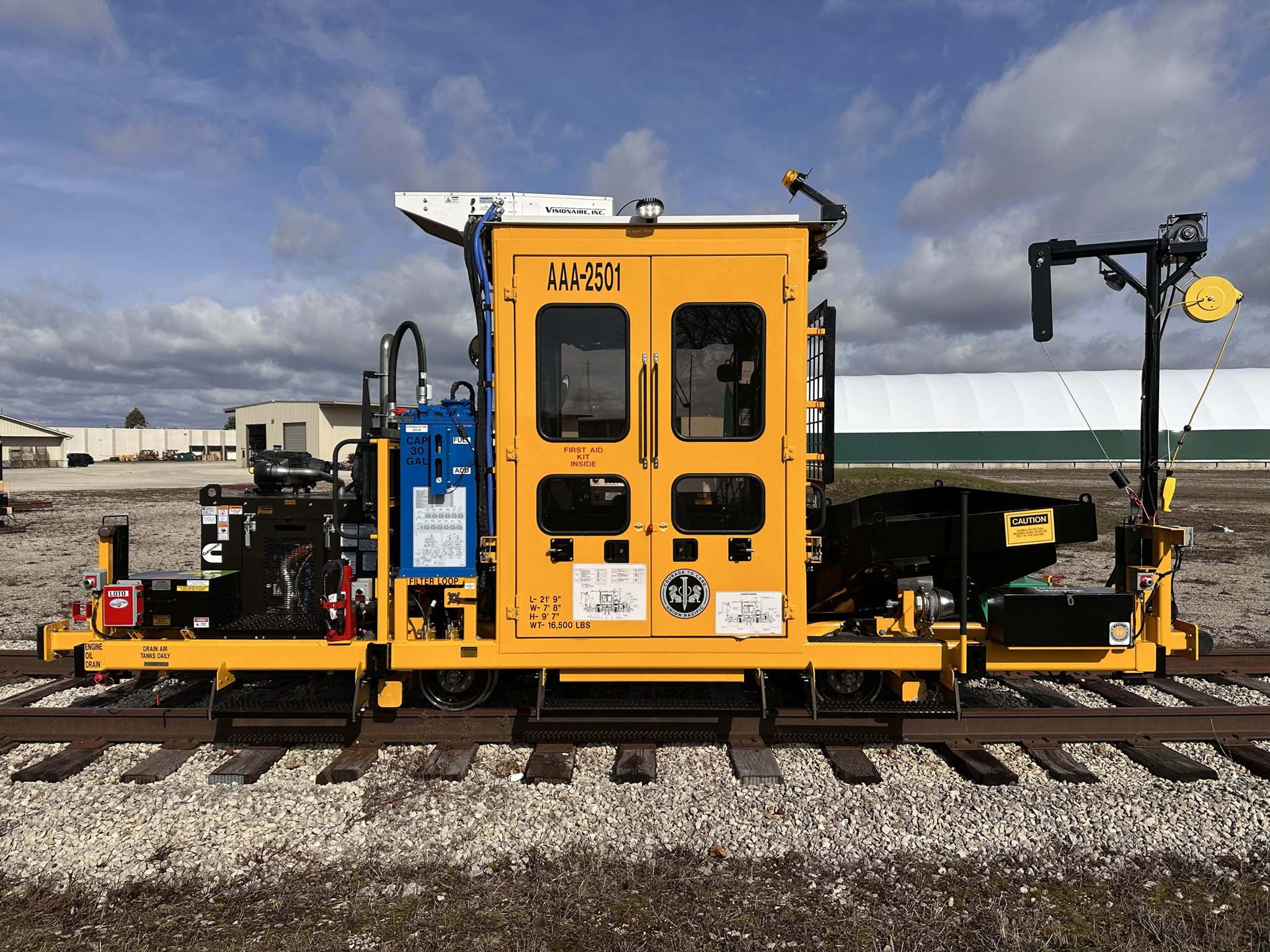

AM3 Anchor Applicator

Overview

The AM3 Anchor Applicator is a single-operator machine designed to apply rail anchors on one rail. Engineered for precision, efficiency, and reliability, it streamlines the anchor application process to improve track maintenance productivity and consistency. With advanced hydraulic control and ergonomic design, the AM3 delivers smooth operation, reduced manual labor, and dependable performance in demanding rail environments—making it an essential tool for modern railroad maintenance operations.

Request A Quote Product Sheet

Features

Hopper can hold up to 3000 anchors
Bristle/strip door hopper access keeps conditioned air in and heat and dust out
Separate engine/machine control boxes
Excellent visibility fore and aft when track traveling
MD4 control technology ensures easy machine operation and faster/smoother cycles
Dynamic touchscreen interface for detailed in-depth diagnostics and settings controls
Advance load-sense pump controls allow for NON-DEF engine power, saving costs and being more environmentally friendly
Easy touchscreen controls with workhead adjustments from the operator seat, saving time and offering a safer way to make machine adjustments
Onboard electrical system diagnostics to simplify troubleshooting and lessen downtime
Remote program updates and remote troubleshooting with built-in telematics (within cell range)
Smart hydraulic valves with self-diagnostics and maintenance screens increase flexibility, reliability, and reduce parts inventory by using the same control valve for every function
Equipped with a center H-Frame turntable that can rotate the machine 180 degrees to run in the opposite direction
Excellent accessibility to workhead components to perform routine maintenance
Selective work/travel modes

Options

Non-DEF Tier 4 engine packages from brands like DEERE, CATERPILLAR, and CUMMINS
External emergency stop buttons
Tooling available for Improved Fair Rail Anchor, Unit 5 Rail Anchor, Unit Spring Rail Anchor, and Viper-1 Rail Anchor
Anchor Hoist for filling the hopper with anchor bags
Numerous other options, such as: Heated mirrors, hose racks, sleaved hydraulic plumbing, test stations, tinted windows, tool boxes, top off pumps, perimeter lights, etc.
Different camera systems available
RRP engineered custom options at request

Specs

Seating Capacity: 1 operator, no passengers
Travel Speed: 24 mph (~39 km/h); chain-driven propulsion system
Engine: 74 HP Cummings 2.8L Tier IV liquid-cooled engine requiring no DEF or Regen needed
Fuel Tank Fill Capacity: 54 gallons (~205 litres)
Hydraulic Reservoir Fill Capacity: 30 gallons (~113 litres)
24V DC system with circuit breakers for lights and accessories
Cast steel wheels for long wear, self-aligning roller bearings, and 3" or 3.5" axles available

Dimensions

Length: 22' in (~6.7 m)
Width: 8' (~2.4 m)
Height: 9' 9" (~3 m)
Weight: 16,000 lbs (~7,257 kg)

*Dimensions vary based on user options

Safety

Crash detection for setter arms that stops the cycle if it encounters tie for added protection
Enclosed cab with HVAC system, in-cab pressurizer for a safer work environment, and acoustical protection
Side egress optimizes safe operator exit in congested areas
Safety is enhanced using electric-powered controls that reduce operator fatigue
