Dual e-Clip Applicator
DCA

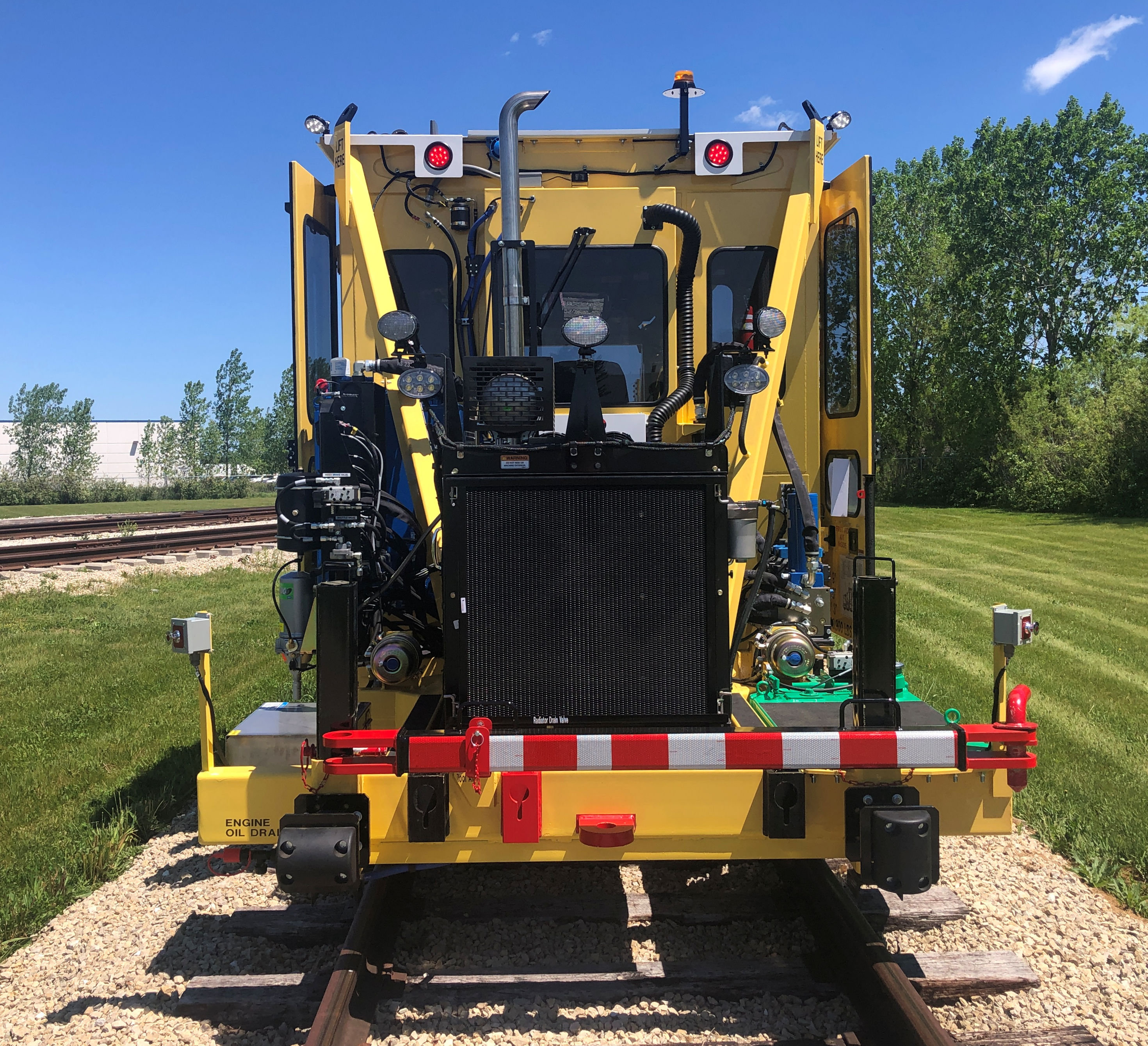

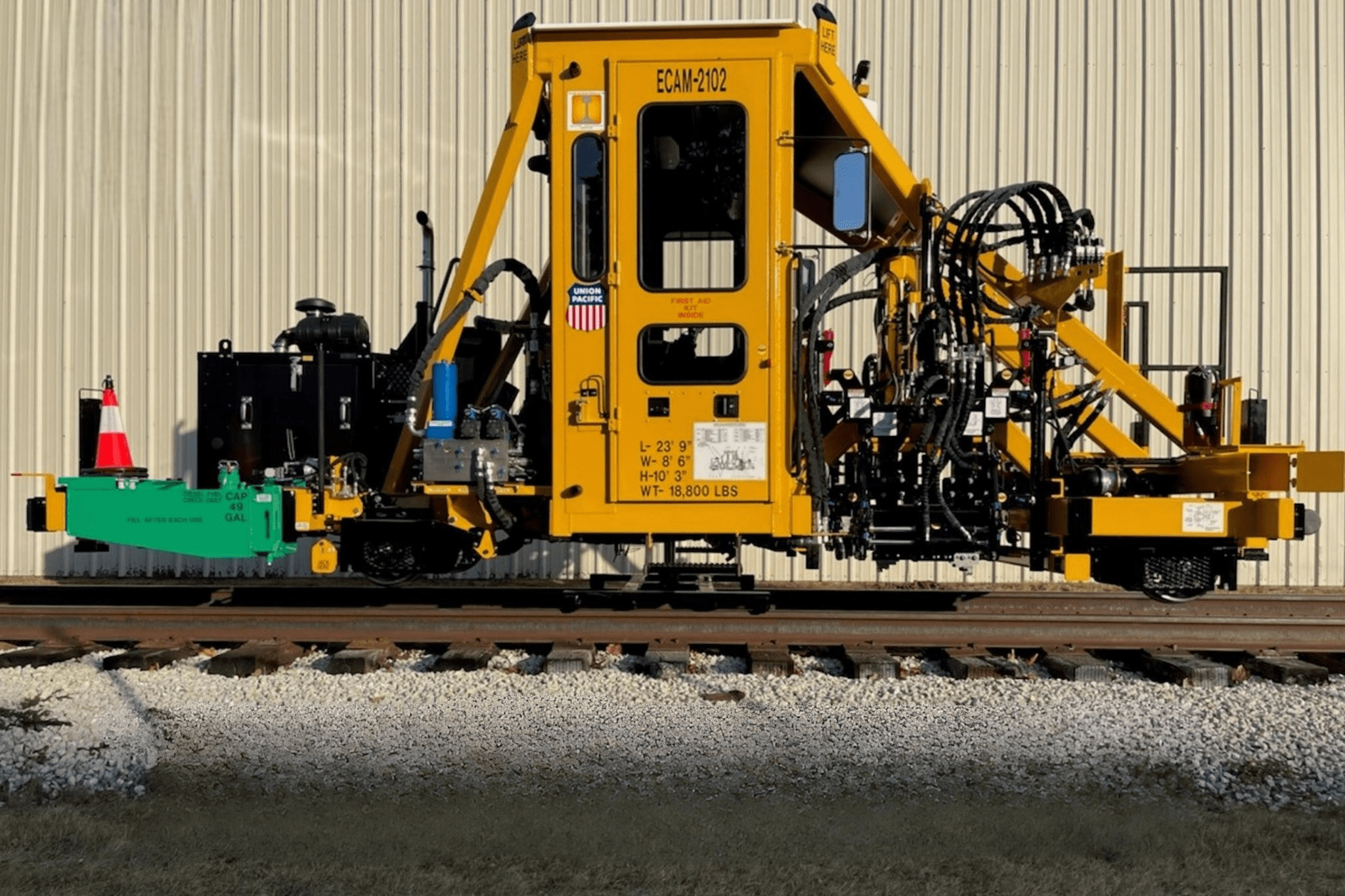

The Racine Dual e‑Clip Applicator/Remover is a self-propelled, dual-workhead machine engineered for efficient installation and removal of e‑clips on one or two rails simultaneously. The DCA delivers reliable, high‑productivity performance for track maintenance while maintaining optimal safety and operator comfort.
Information on the different RRP DCA Apply and Removal Tools.
- Workhead design allows the workhead to apply and remove clips with a simple tooling change, a great labor saver for de-stressing operations
- Quick tool changes to accommodate different clip styles and rail/tie/plate configurations
- Two joystick controls to control each side of the workhead independently
- Excellent 360-degree visibility fore and aft when track traveling
- Advance load-sense pump controls allow for NON-DEF engine power, saving costs and being more environmentally friendly
- Easy touchscreen controls with workhead adjustments from the operator seat, saving time and offering a safer way to make machine adjustments
- Onboard electrical system diagnostics to simplify troubleshooting and lessen downtime
- Remote program updates and remote troubleshooting with built-in telematics allow our technicians to help troubleshoot and lessen downtime (within cell range)
- Smart hydraulic valves with self-diagnostics and maintenance screens increase flexibility, reliability, and reduce parts inventory by using the same control valve for every function
- Equipped with a center H-Frame turntable that can rotate the machine 180 degrees in the opposite direction
- Accessible workhead components for routine maintenance
- Selective work/travel modes
- Seating Capacity: 3 (one operator, two passengers)
- Travel Speed: 24 mph (~39 km/h); chain-driven propulsion system
- Fuel Tank Fill Capacity: 49 gallons (~185.5 litres) with 2" diameter fill neck, bottom sump, and mechanical fluid level gauge
- Hydraulic Reservoir Fill Capacity: 51 gallons (~193 litres) with clean-out covers, guarded fluid level, and temperature gauge
- 24V DC system with circuit breakers for lights and accessories
- Cast steel wheels for long wear, self-aligning roller bearings, and axle locks for safe operation
- Structural steel frame with derail skids, keyhole tie downs, and rubber bumpers
- Ergonomic seat with joystick controls
- Length: 22' 7" (~6.88 m)
- Width: 8' 5" (~2.57 m)
- Height: 10' 3" (~3.10 m)
- Weight: 22,000 lbs (~9,980 kg)
*Dimensions vary based on user options
- Enclosed cab with HVAC system, in-cab pressurizer for a safer work environment, and acoustical protection
- Dual side egress optimizes safe operator exit in congested areas
- Safety is enhanced using electric-powered controls that reduce operator fatigue
- Workhead barriers cover exposed areas
