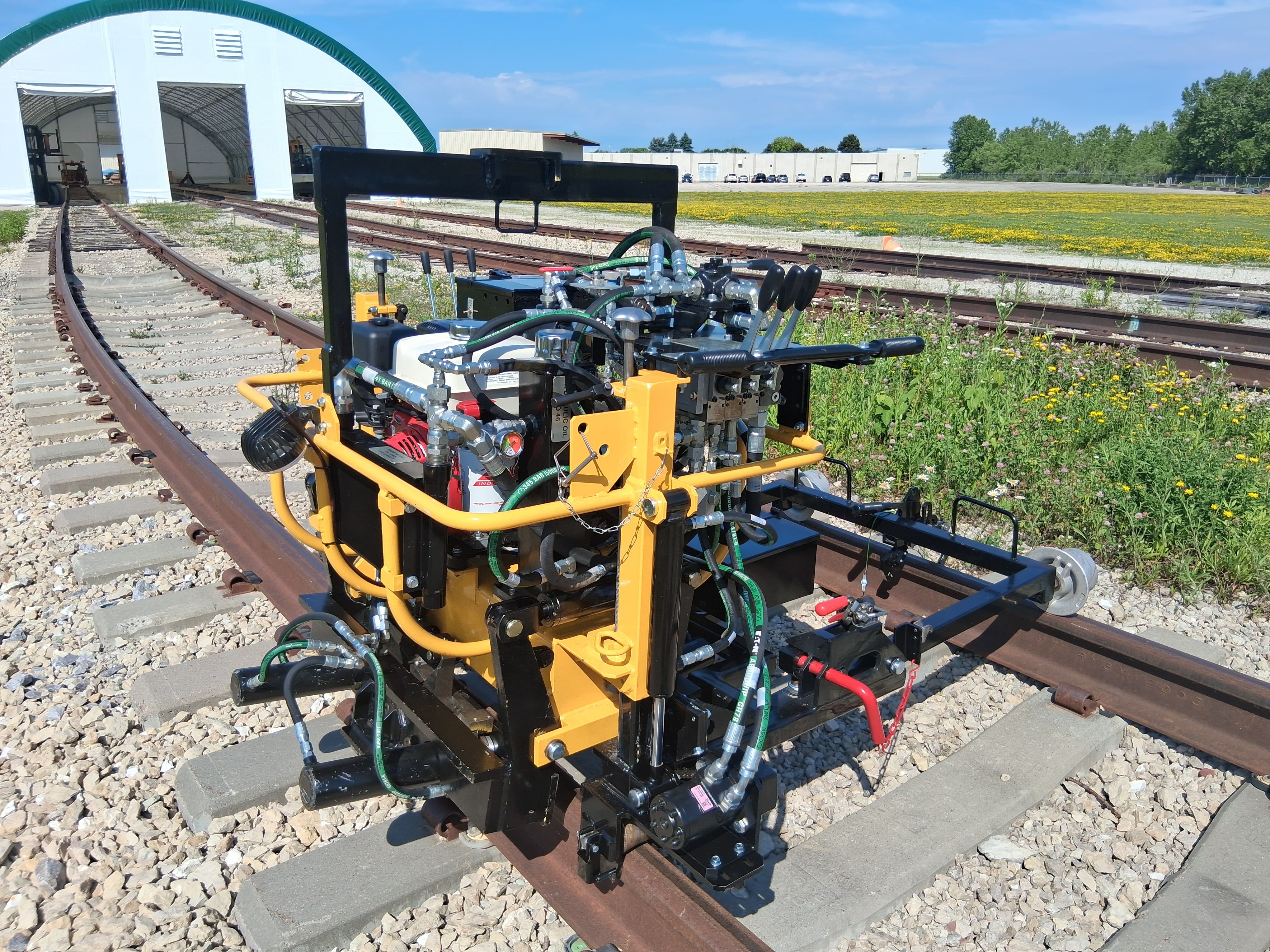

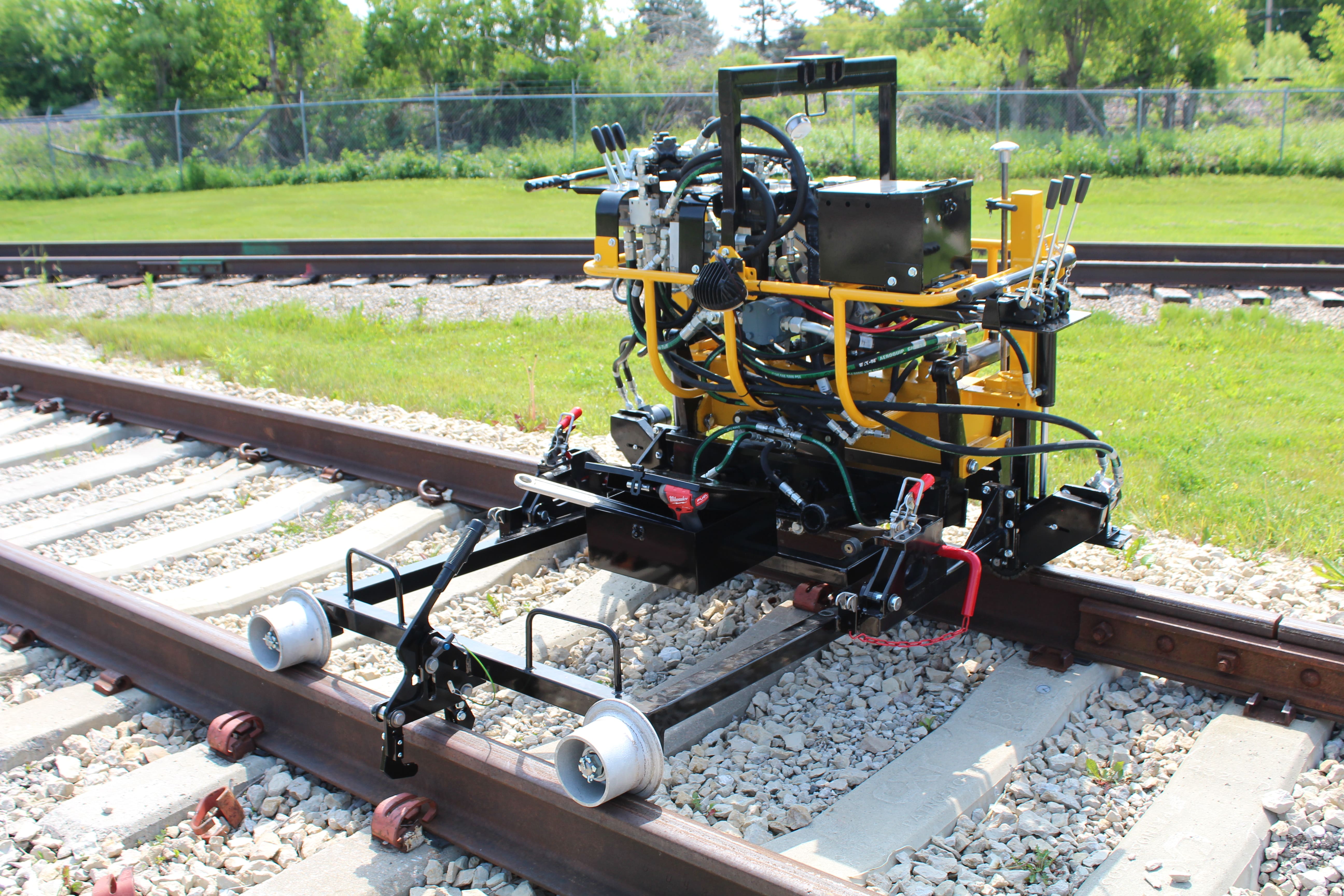

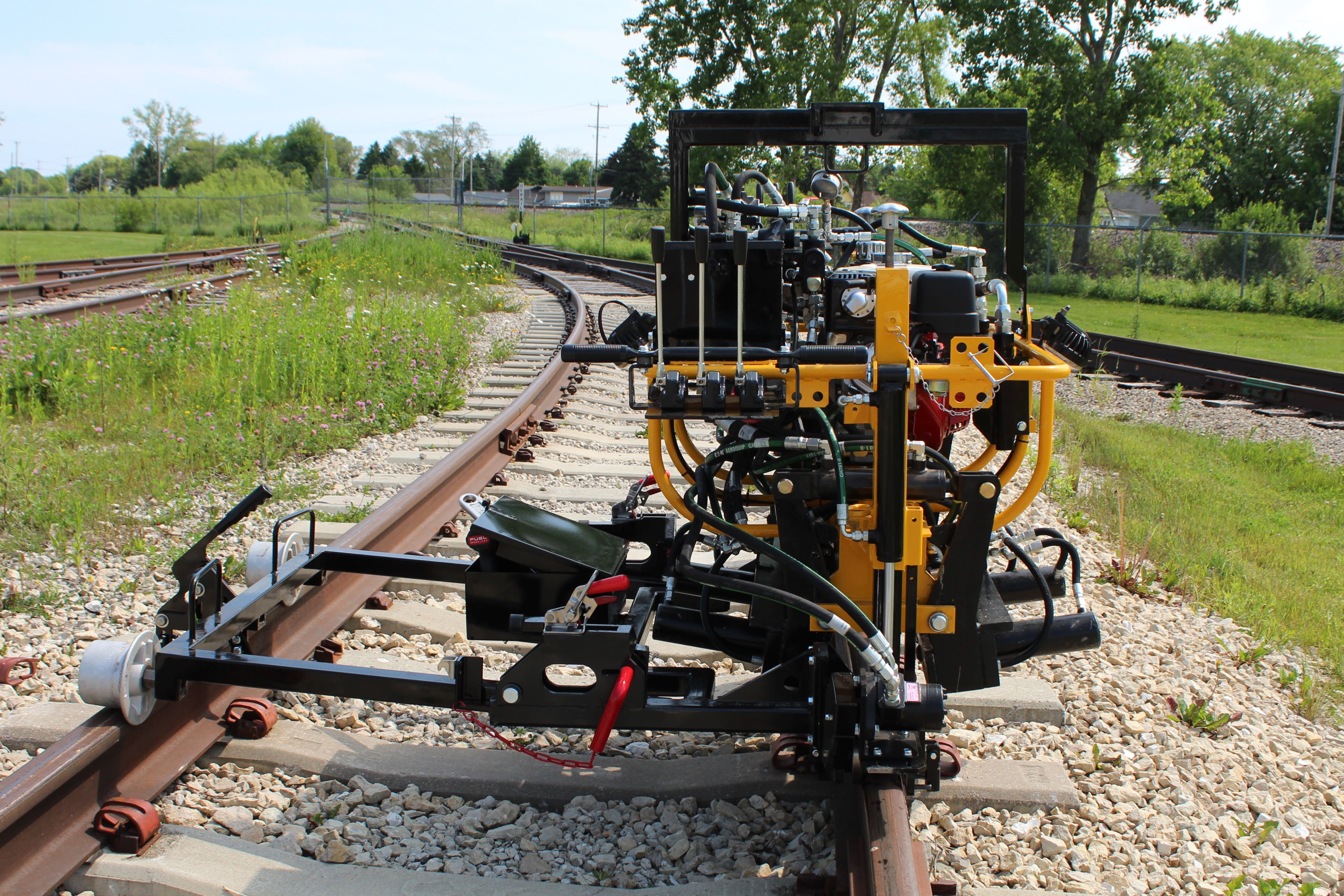

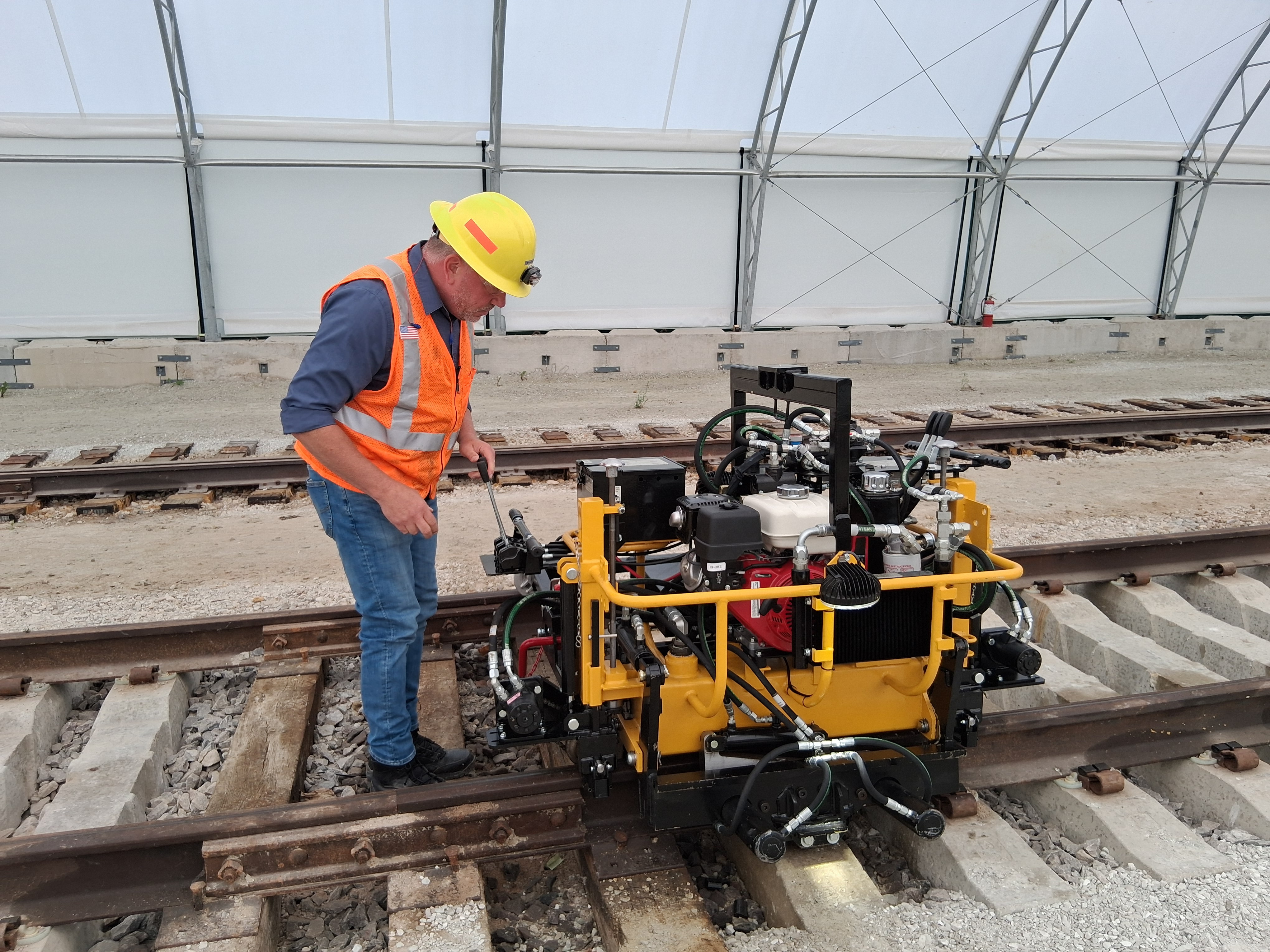

Ultra Clipper

Overview

The Ultra Clipper is a self‑propelled, compact machine designed for installing and removing two rail clips simultaneously on a single rail. Workhead arms apply steady hydraulic pressure—rather than hammer impacts—ensuring the clip retains full holding power.

The Ultra Clipper can be used with a variety of workheads (sold separately).

Request A Quote Product Sheet

Features

The Ultra Clipper can be used on 90 -141 lbs of rail
Features an outrigger wheel assembly for stability, lessening operator fatigue
Self-propelled hydraulic motor eliminates the operator from pushing the machine on an incline
Dual controls located at either end of the machine are standard, allowing safe, easy, bi-directional operation without walking backward
Workhead tools push the preset clips into the socket using steady pressure
A versatile design that applies/retracts clips on concrete, wood, or steel ties with no workhead change out
Simple hydraulic lever operation allows fast switching between apply and retract modes
Work lights for night or tunnel projects
A lightweight design that allows it to be loaded onto a maintenance cart or pick-up truck for transportation to the work site

Options

Two-wheel drive
Hydraulic power assist travel system
Two-stage, high and low hydraulic pump with integral sequence valve
Work lights for night or tunnel projects

Specs

Engine: Honda GX270, 270cc with electric start
Fuel Tank Fill Capacity: 1.6 gallons (~6 litres) , bottom sump, 2" diameter fill neck
Hydraulic Reservoir Fill Capacity: 8 gallons (~30 litres) with clean-out covers, guarded fluid level, and temperature gauge
12V DC with main circuit breaker
