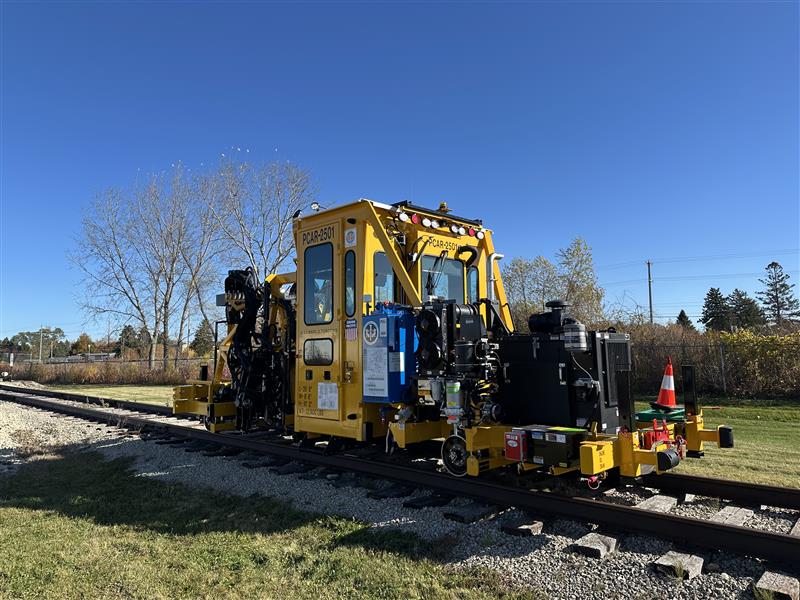

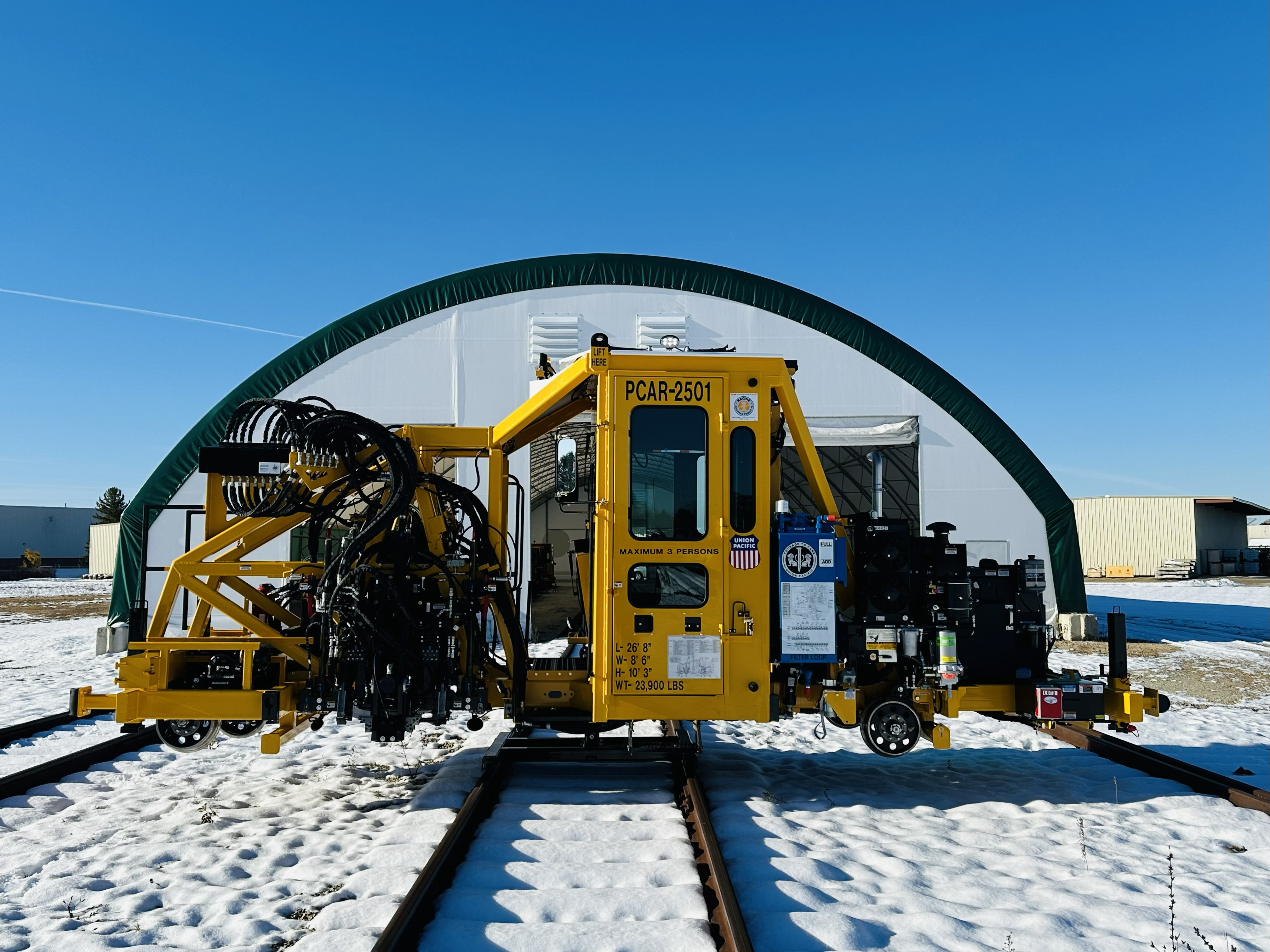

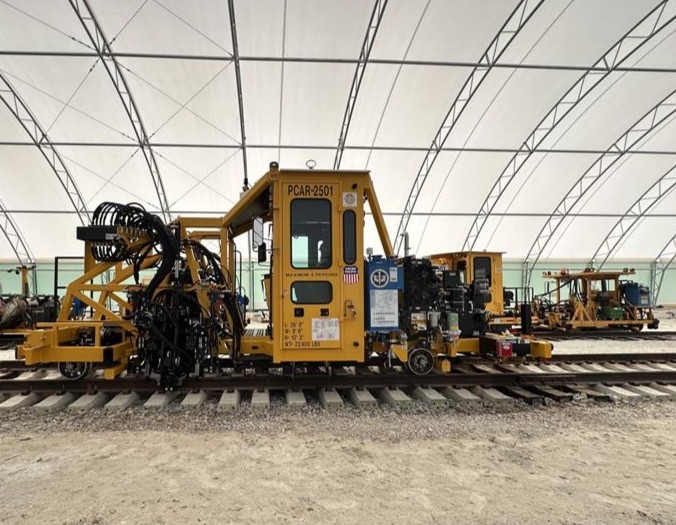

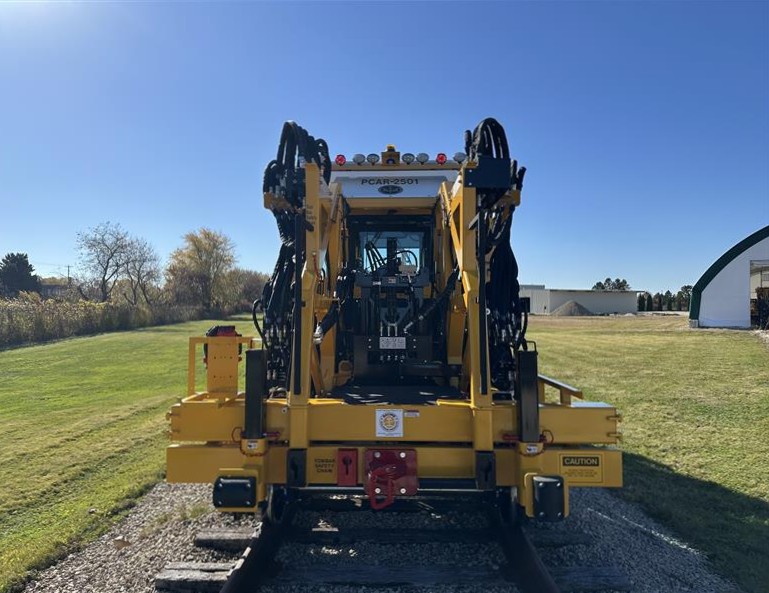

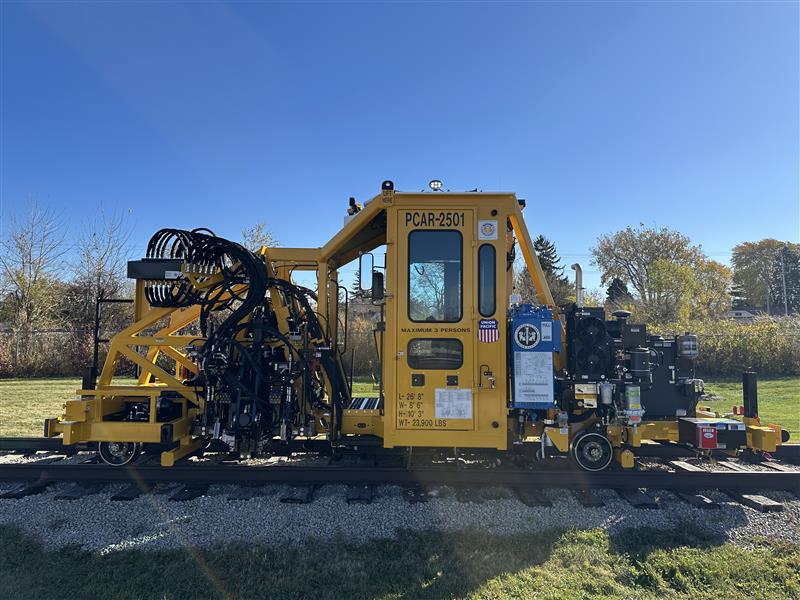

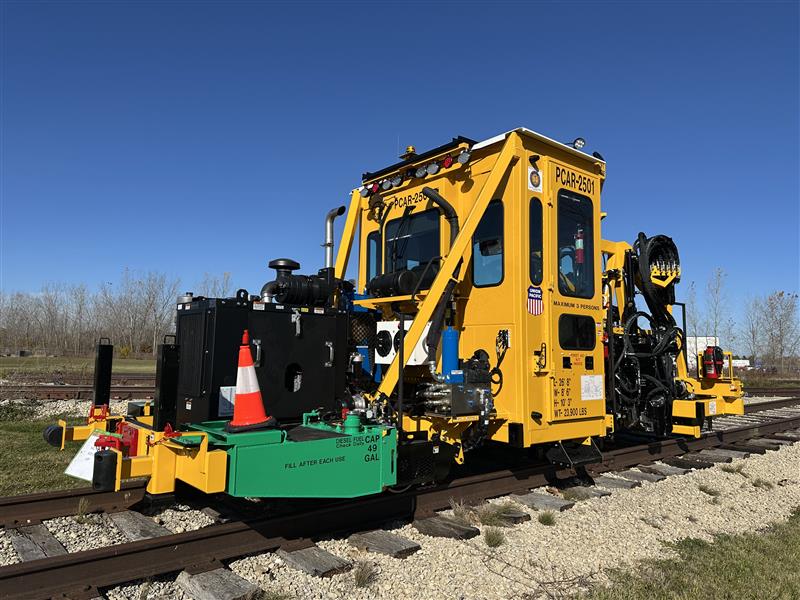

Nipper Clipper
The Nipper Clipper is a dual‑workhead production/maintenance machine designed for efficient application and retraction of Safelok I® and Safelok III® rail clips—no tooling change‑out needed. A single operator can simultaneously apply 2 or 4 clips, improving productivity. Its built‑in third tie‑lifting workhead manages loose ties and ensures safe, precise clip re‑installation, minimizing lost parts and debris risk.
- Third 'Nipper' workhead picks up concrete rail
- Unique retraction tool releases the clip from the socket, retracts the clip, and precisely positions the clip at the end of the socket in preparation for re-installation
- Exclusive feature prevents clips from being lost and reduces the risk of injury from flying clips
- Two joystick controls to control each side of the workhead independently
- Simple adjustments align the workhead to accommodate rail heights and clip extraction distance
- Workhead design allows the workhead to apply and remove clips with a simple tooling change, a great labor saver for de-stressing operations
- The MD4 control system can easily be changed from one workhead setup to another. Also used to help troubleshoot machine maintenance issues
- Dynamic touchscreen interface for detailed in-depth machine diagnostics and settings controls
- Advance load-sense pump controls allow for NON-DEF engine power, saving costs and being more environmentally friendly
- Easy touchscreen controls with workhead adjustments from the operator seat, saving time and offering a safer way to make machine adjustments
- Onboard electrical system diagnostics to simplify troubleshooting and lessen downtime
- Remote program updates and remote troubleshooting with built-in telematics allow our technicians to help troubleshoot and lessen downtime (within cell range)
- Smart hydraulic valves with self-diagnostics and maintenance screens increase flexibility, reliability, and reduce parts inventory by using the same control valve for every function
- Equipped with a center H-Frame turntable that can rotate the machine 180 degrees in the opposite direction
- Accessible workhead components for routine maintenance
- Selective work/travel modes
- Seating Capacity: 3 (one operator, two passengers)
- Travel Speed: 24 mph (~39 km/h); chain-driven propulsion system
- Fuel Tank Fill Capacity: 49 gallons (~185.5 liters) with 2" diameter fill neck, bottom sump, and mechanical fluid level gauge
- Hydraulic Reservoir Fill Capacity: 51 gallons (~193 litres) with clean-out covers, guarded fluid level, and temperature gauge
- 24V system with circuit breakers for lights & accessories
- Cast steel wheels for long wear, self-aligning roller bearings, and axle locks for safe operation
- Structural steel frame with derail skids, keyhole tie downs, rubber bumpers
- Ergonomic seat with joystick controls
- Length: 28' 6" (~8.7 m)
- Width: 8' 6" (~2.6 m)
- Height: 10' 5" (~3.18 m)
- Weight: 23,600 lbs (~10,705 kg)
*Dimensions may vary based on user options
- Features a special workhead that prevents clips from being lost and reduces the risk of injury from flying clips
- Enclosed cab with HVAC system, in-cab pressurizer for a safer work environment, and acoustical protection
- Dual side egress optimizes safe operator exit in congested areas
- Safety is enhanced using electric-powered controls that reduce operator fatigue
- Workhead barriers cover exposed areas
